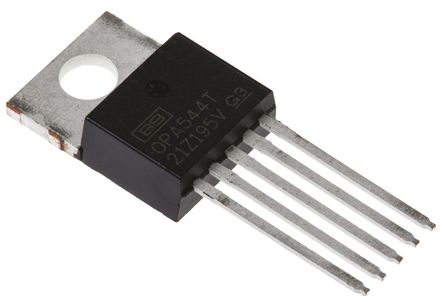

Image is for your reference only,please check specifications for details

OPA544TG3 - TI
Manufacturer:
TI
ManyChip's Part#:
MC10659950
Category:
Operational Amplifier, OP Amp IC
Package:
TO-220-5
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS OPA544TG3 Operational Amplifier, Single, 1 Amplifier, 1.4MHz, 8V/µs, ± 10V to ± 35V, TO-220, 5Pins
Stock Locations:
Availability:
288 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 14.25

Updated at 31/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

OPA544TG3 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	5 Pin
Case/Package	TO-220-5
Supply Current	12 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Common Mode Rejection Ratio	90 dB
Input Offset Drift	10.0 µV/K
Bandwidth	1.4 MHz
Slew Rate	8.00 V/μs
Gain Bandwidth Product	1.4 MHz
Input Offset Voltage	5 mV
Input Bias Current	15 pA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	1.4 MHz
Minimum CMRR Range	90 dB
	Show
Size-Length	10.16 mm
Size-Width	4.58 mm
Size-Height	8.51 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
