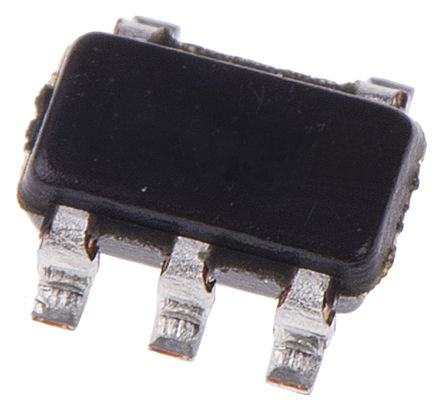

Image is for your reference only,please check specifications for details

OPA694IDBVT - TI
Manufacturer:
TI
ManyChip's Part#:
MC22713800
Category:
Operational Amplifier, OP Amp IC
Package:
SOT-23-5
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS OPA694IDBVT Operational Amplifier, Single, 1 Amplifier, 1.5GHz, 1.7kV/µs, SOT-23, 5Pins
Stock Locations:
Availability:
139 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.61

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The OPA694IDBVT is an ultra-wideband low-power Current Feedback Amplifier features high slew rate and low differential gain/phase errors. An improved output stage provides ±80mA output drive with <1.5V output voltage headroom. Low supply current with >500MHz bandwidth meets the requirements of high-density video routers. Being a current feedback design, the OPA694 holds its bandwidth to very high gains-at a gain of 10, the OPA694 will still provide 200MHz bandwidth. RF applications can use the OPA694 as a low-power SAW pre-amplifier. Extremely high 3rd-order intercept is provided through 70MHz at much lower quiescent power than many typical RF amplifiers.
690MHz High gain of 2V/V bandwidth
5.8mA Low supply current
675MHz High full-power bandwidth
0.03%/0.015° Low differential gain/phase
Green product and no Sb/Br

Show

OPA694IDBVT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SOT-23-5
Supply Current	5.8 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	5 Position
Common Mode Rejection Ratio	55 dB
Input Offset Drift	15.0 µV/K
Bandwidth	1.5 GHz
Slew Rate	1.70 kV/μs
Gain Bandwidth Product	1.50 GHz
Input Offset Voltage	500 µV
Input Bias Current	5 µA
Available Channels	S, D
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	1.5 GHz
Minimum CMRR Range	55 dB
Supply Voltage	7V ~ 12.6V
	Show
Size-Length	2.9 mm
Size-Width	1.6 mm
Size-Height	1.15 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
