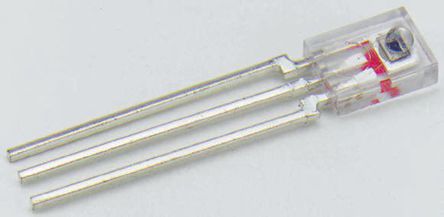

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

**OPL550 and OPL551 Series Photologic Sensors**
The OPL550 and OPL551 series, from Optek Technology, are a family of photologic sensors. They feature a TTL/LSTTL compatible logic level output which is able to drive up to 8 TTL loads without additional circuitry. Suitable applications for the OPL550 and OPL551 series include; assembly line automation, machine automation, machine safety, end of travel sensor, door sensors and non-contact reflective object sensor.

Show

OPL550 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	Through Hole
Supply Voltage (DC)	5.00 V, 5.50 V (max)
Output Voltage	30.0 V
Supply Current	15 mA
Number of Channels	1 Channel
Number of Positions	3 Position
Wavelength	935 nm
Input Current	15.0 mA
Power Dissipation	200 mW
Rise Time	25 ns
Output Voltage (Max)	35 V
Fall Time	25 ns
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
	Show
Size-Length	4.45 mm
Size-Width	2.34 mm
Size-Height	5.72 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Housing Material	Plastic
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
