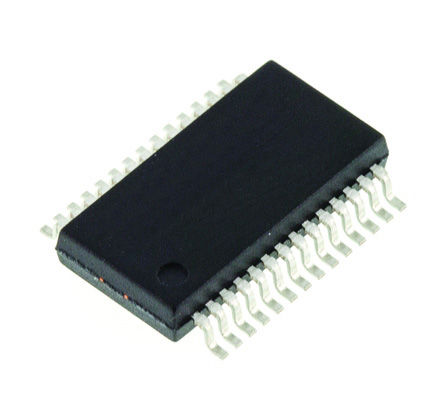

Image is for your reference only,please check specifications for details

PCM1793DB - TI
Manufacturer:
TI
ManyChip's Part#:
MC8279896
Category:
Digital to Analog, DAC IC
Package:
SSOP-28
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS PCM1793DB Digital to Analogue Converter, 24Bit, 192KSPS, Serial, 4.5V to 5.5V, SSOP, 28Pins
Stock Locations:
Availability:
57 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 7.37

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The PCM1793DB is a monolithic CMOS stereo Digital-to-analog Converter support circuitry. The data converter uses TIs advanced segment DAC architecture to achieve excellent dynamic performance and improved tolerance to clock jitter. The PCM1793 provides balanced voltage outputs, allowing the user to optimize analog performance externally. Sampling rates up to 200kHz are supported.
8x Oversampling digital filter
Digital de-emphasis
Soft mute
Zero flags for each output
5V Tolerant digital inputs
Green product and no Sb/Br

Show

PCM1793DB Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	28 Pin
Case/Package	SSOP-28
Number of Outputs	2 Output
Supply Current	28.0 mA
Number of Channels	2 Channel
Number of Positions	28 Position
Number of Bits	24 Bit
Power Dissipation	0.11 W
Sample Rate	200 ksps
Power Consumption	90.0 mW
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-25 ℃
Power Dissipation (Max)	110 mW
Number of DACs	2 DAC
Supply Voltage	4.5V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4.5 V
	Show
Size-Length	10.2 mm
Size-Width	5.3 mm
Size-Height	1.95 mm
Operating Temperature	-25℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
