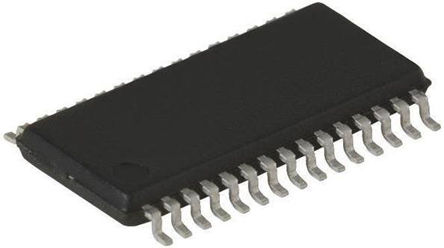

Image is for your reference only,please check specifications for details

PCM1862DBT - TI
Manufacturer:
TI
ManyChip's Part#:
MC30225729
Category:
Analog to Digital, ADC IC
Package:
TSSOP-30
Datasheet:
Datasheet 3D Model
Description:
103dB 2CH S/W Controlled Audio ADC With Universal Front End 30-TSSOP -40℃ to 125℃
Stock Locations:
Availability:
218 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.33

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Do you have any sort of real time sensor? This general purpose PCM1862DBT analog front end manufactured from Texas Instruments is going to be a must. This device"s minimum operating supply voltage of 3 V, while its maximum is 3.6 V. This AFE has a temperature range of -40 °C to 125 °C. This device comes in tube packaging. It has 2 channels per chip. This device uses analog and digital power.

Show

PCM1862DBT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	30 Pin
Case/Package	TSSOP-30
Supply Voltage (DC)	3.00V (min)
Supply Current	16 mA
Number of Channels	2 Channel
Number of Positions	30 Position
Number of Bits	24 Bit
Power Dissipation	85 W
Sample Rate	192 ksps
Power Consumption	85.0 mW
Number of ADCs	2 ADC
Input Voltage (Max)	3.6 V
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Number of Input Channels	4, 8 Channel
Supply Voltage	3V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	3 V
	Show
Size-Length	7.9 mm
Size-Width	4.5 mm
Size-Height	1.05 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
