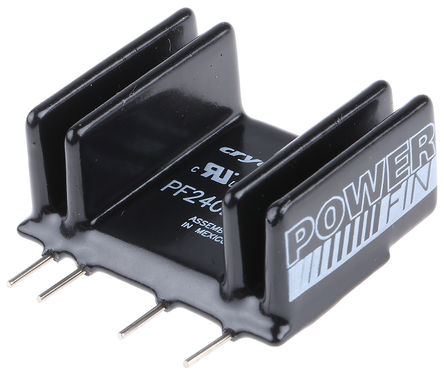

Image is for your reference only,please check specifications for details
- PF240D25 - Crydom
-
Manufacturer:Crydom
-
ManyChip's Part#:MC7438683
-
Category:Solid State Relay
-
Package:SIP-4
-
Datasheet:Datasheet 3D Model
-
Description:CRYDOM PF240D25 Solid State Relay, PowerFin / PF Series, SIP, SPST-NO, 25A, PCB, Through Hole, 12VAC, 280VAC
-
Stock Locations:
-
Availability:631 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 46.57
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- PowerFin™ PF Series AC Output Relays
- ** Up to 25 Amp; 120/240, 380, 480 VAC; AC SIP**
- Crydom"s PowerFin™ series delivers the highest ratings of any single in-line package (SIP). The integral heat sink design can operate at 25 amps RMS in forced air at 85°C case temp. With natural convection in free air, it rates 10 amps RMS at 25°C ambient.* Operating Temperature Range:** –30°C to 80°C. ** Isolation Voltage (V RMS ):** 2500.
- ** Features**
- * AC or DC Control, SCR AC Output
- * Switching: Zero-Cross, Random Turn-On (R Suffix)
- * UL, VDE Approved (DC Control Models Only)
PF240D25 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 4 Pin |
| Case/Package | SIP-4 |
| Supply Voltage (DC) | 5.00 V |
| Operating Voltage | 60.0V (max) |
| Current Rating | 10 A |
| Capacitance | 8 pF |
| Output Voltage | 12V ~ 280V |
| Output Current | 25000 mA |
| Contacts Type | SPST-NO |
| Load Current | 25 A |
| Input Current | 15 mA |
| Power Dissipation | 500 mW |
| Isolation Voltage | 4000 v |
| Input Voltage (Max) | 15 V |
| Input Voltage (Min) | 3 V |
| Output Voltage (Max) | 280 V |
| Input Current (Min) | 15 mA |
| Load Current (Max) | 25 Arms |
| Load Current (Min) | 0.06 A |
| Operating Temperature (Max) | 80 ℃ |
| Operating Temperature (Min) | -30 ℃ |
| Voltage Rating | 280 VAC |
| Operating Voltage (Min) | 12 VAC |
| Operating Voltage (Max) | 280 VAC |
| Input Voltage | 15 V |
| Show | |
| Size-Length | 43.1 mm |
| Size-Width | 18.3 mm |
| Size-Height | 34.3 mm |
| Operating Temperature | -30℃ ~ 80℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| HTS Code | 8536490080 |
| ECCN Code | EAR99 |
