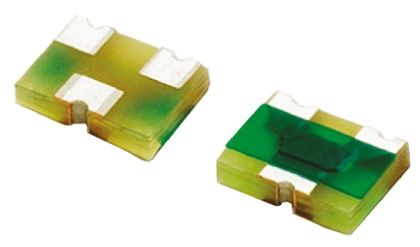

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The PGB1010603NR is a PulseGuard® bidirectional surface mount polymeric ESD Suppressor for network hardware and external storage. It helps to protect sensitive electronic equipment against electrostatic discharge (ESD). It supplements the on-chip protection of integrated circuitry and is best suited for low voltage, high-speed applications where low capacitance is important. Data ports utilizing such high-speed protocols as USB 2.0, IEEE1394, HDMI and DVI can benefit from this new technology. PulseGuard® suppressor use polymer composite materials to suppress fast-rising ESD transients (as specified in IEC 61000-4-2 and MIL-STD-883E), while adding virtually no capacitance to the circuit.
Extended pulse life over previous versions
New, reduced trigger voltage
Ultra-low capacitance
Low leakage current
Fast response time
1-line of protection

Show

PGB1010603NR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package (SI)	1608
Case/Package	0603
Voltage Rating (DC)	24.0 V
Operating Voltage	24 VDC
Capacitance	0.06 pF
Breakdown Voltage	500 V
Number of Positions	2 Position
Clamping Voltage	150 V
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-65 ℃
Voltage Rating (Max)	24 VDC
	Show
Size-Length	1.66 mm
Size-Width	787 µm
Size-Height	0.36 mm
Operating Temperature	-65℃ ~ 125℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
REACH SVHC Compliance Edition	2014/12/17
ECCN Code	EAR99
