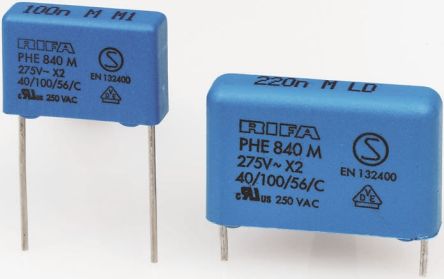

Image is for your reference only,please check specifications for details

PHE840MZ7220MF14R06L2 - KEMET Corporation
Manufacturer:
KEMET Corporation
ManyChip's Part#:
MC56634957
Category:
Film Capacitor
Package:
Radial
Datasheet:
Datasheet 3D Model
Description:
Cap Film Suppression X2 2.2uF 760VDC/275VAC PP 20% (31.5 X 17.5 X 28mm) Radial 27.5mm 105℃ Bulk
Stock Locations:
Availability:
264 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.39

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

**PHE840M
Specifications:*
* Capacitance Range: 0.01 μF to 10 μF
* Voltage Rating: 275/280 VAC Up to +105°C
* Tolerance: 20%
* New, Small Dimensions Including Low Profile Capacitors
**Applications:**
For worldwide use as electromagnetic interference suppressor in all X2 and across-the-line applications.
**Construction:**
Metallized polypropylene film encapsulated with self extinguishing epoxy resin in a box of material recognized to UL 94 V–0.

Show

PHE840MZ7220MF14R06L2 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	Radial
Voltage Rating (DC)	760 V
Voltage Rating (AC)	275 V
Capacitance	2.2 µF
Capacitance Tolerance	±20 %
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-55 ℃
	Show
Size-Length	31.5 mm
Size-Width	17.5 mm
Size-Height	28 mm
Lead Length	6 mm
Dielectric Material	Polypropylene
Operating Temperature	-55℃ ~ 105℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
