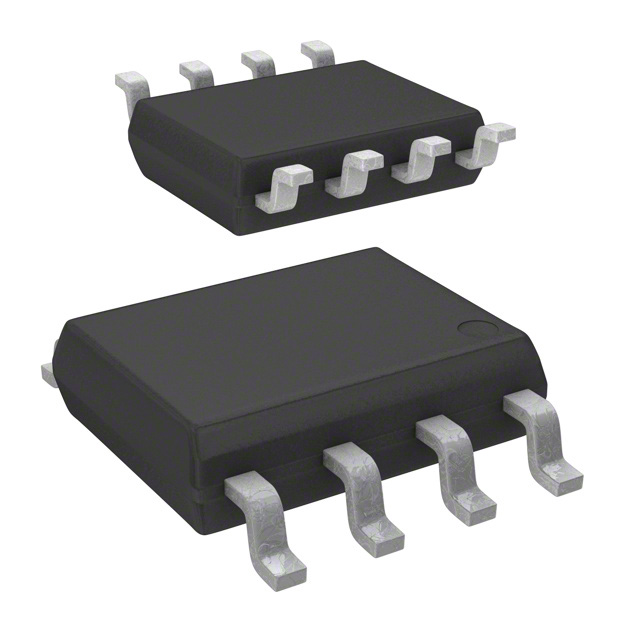

Image is for your reference only,please check specifications for details
- PI6CV304WE - Pericom Semiconductor
-
Manufacturer:Pericom Semiconductor
-
ManyChip's Part#:MC98520503
-
Category:Clock Buffer, Driver, PLL IC
-
Package:SOIC-8
-
Datasheet:Datasheet 3D Model
-
Description:1: 4 3.3V 160MHz Surface Mount Low Noise PCI (X) Clock Buffer - SOIC-8
-
Stock Locations:
-
Availability:402 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.51
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Description
- Pericom’s PI6CV304 and PI6CV2304 are low-skew, low- noise, high speed clock buffers and are ideal for computing, networking, and communication applications. Application examples include PCI(X) clock buffers in servers and workstations, PCI(X) Storage Area Network (SAN), and RAID controllers. They are used for networking and communications applications requiring 80 MHz for 10/100 Mbps Ethernet and 125 MHz for Gigabit networking clocks.
- Features
- • 160 MHz operation
- • Low noise, low skew: 150ps max
- • Fast rise/fall time: 1.0ns typ.
- • Fast propagation delay: 2.0ns typ.
- • 5V I/O tolerant input
- • Industrial temperature (–40°C to 85°C)
- • 3.3V power supply
- • Packaging (Pb-free & Green available)
- – 8-pin TSSOP (L)
- – 8-pin SOIC (W)
- Applications
- • 33 MHz PCI-to-133 MHz PCIX controllers
- • 80 MHz for 10/100 Mbps Ethernet
- • 125 MHz for Gigabit networking
- • 155 MHz for Optical OC3/SDH/SONET
PI6CV304WE Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | SOIC-8 |
| Number of Outputs | 4 Output |
| Number of Circuits | 1 Circuit |
| Duty Cycle | 55 % |
| Maximum Duty Cycle | 55 % |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 3V ~ 3.6V |
| Supply Voltage (Max) | 3.6 V |
| Supply Voltage (Min) | 3 V |
| Show | |
| Size-Width | 3.99 mm |
| Size-Height | 1.5 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
