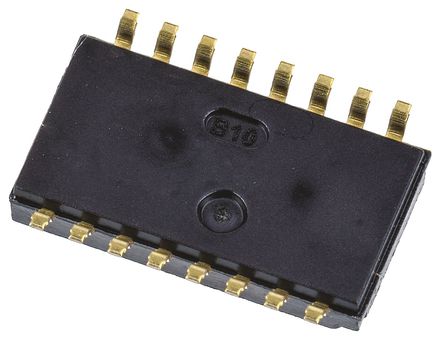

Image is for your reference only,please check specifications for details

GDH08S04 - TE Connectivity
Manufacturer:
TE Connectivity
ManyChip's Part#:
MC3840671
Category:
DIP Switch, SIP Switch
Package:
DIP
Datasheet:
Datasheet 3D Model
Description:
TE CONNECTIVITY GDH08S04 DIP / SIP Switch, 8Circuits, SPST, SMD, GDH Series, DIP Sealed, 24VDC
Stock Locations:
Availability:
1,033 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.26

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The GDH series from TE Connectivity are surface mount DIP switches. These are low profile, half pitch, sealed and gold contacts DIP switches.
Switching capacity of 25mA at 24VDC
SPST contact configuration
2, 4, 6, 8 and 10 positions available
6.2mm x 3.2mm size
Slide actuator style
Operating temperature range -30 to +85°C

Show

GDH08S04 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	DIP
Pin Pitch	1.27 mm
Voltage Rating (DC)	24 V
Actuator Type	Rocker
Insulation Resistance	100 MΩ
Orientation	Vertical
Contacts Type	SPST
Number of Circuits	8 Circuit
Flammability Rating	UL 94 V-0
Number of Positions	8 Position
Contact Resistance	100 mΩ
Contact Current Rating	25mA @24VDC
Current Rating (Max)	0.025A @24VDC
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-30 ℃
Voltage Rating (DC Max)	24 V
Maximum Contact Resistance (Max)	100 mΩ
	Show
Size-Length	11.3 mm
Size-Width	8.13 mm
Size-Height	2.3 mm
Contact Material	Copper Alloy
Operating Temperature	-30℃ ~ 85℃
Product Lifecycle Status	Unknown
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
HTS Code	8536509032
ECCN Code	EAR99
