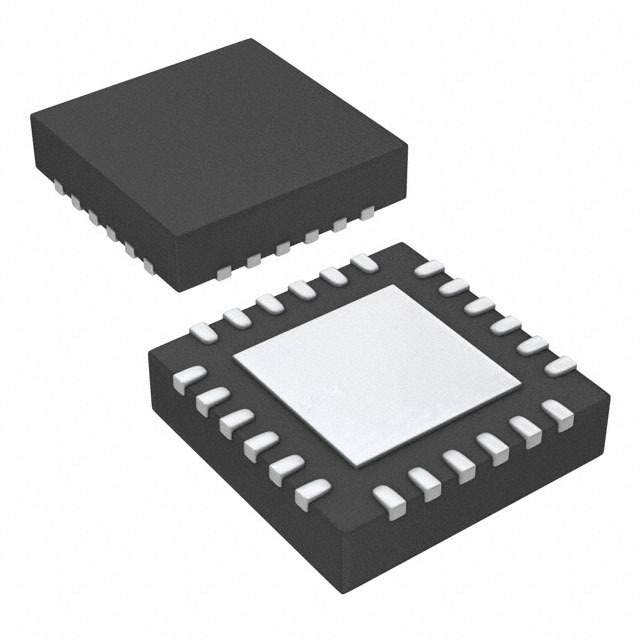

Image is for your reference only,please check specifications for details
- PM6600 - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC170476433
-
Category:LED Driver, LED Display Driver
-
Package:VQFPN-24
-
Datasheet:Datasheet 3D Model
-
Description:Драйвер светодиодов, 60 сегментов, 5 В / 9 В / 12 В / 15 В / 18 В / 24 В, 24-выводной VFQFPN EP, трубка
-
Stock Locations:
-
Availability:255 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 28/08/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Микросхема драйвера светодиодов, 6 выходов, DC-DC регулятор повышающий (Boost) ШИМ-диммирование 32 мА, корпус 24-VFQFPN (4x4)
PM6600 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 24 Pin |
| Case/Package | VQFPN-24 |
| Frequency | 200kHz ~ 1MHz |
| Number of Outputs | 6 Output |
| Output Voltage | 36 V |
| Power Dissipation | 2.3 W |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 2300 mW |
| Input Voltage | 4.7V ~ 28V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
