PMEG2010EA - NXP
Manufacturer:
NXP
ManyChip's Part#:
MC88736929
Category:
Schottky Diode
Package:
SOD-323
Datasheet:
Datasheet 3D Model
Description:

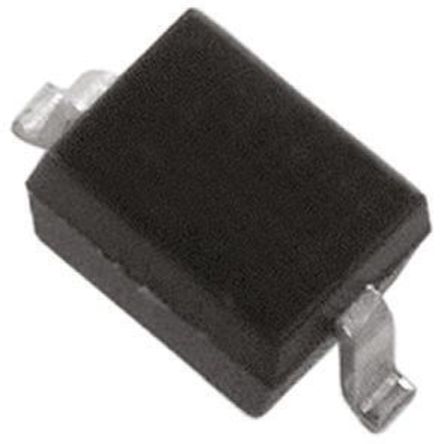

NXP PMEG2010EA Small Signal Schottky Diode, Single, 20V, 1A, 550mV, 5A, 125℃
Stock Locations:
Availability:
1,468 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.24

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The PMEG2010EA is a planar maximum efficiency general application (MEGA) Schottky Barrier Diode with an integrated guard ring for stress protection, encapsulated in a SOD323 (SC-76) very small surface-mounted device (SMD) plastic package. It is used for ultra high-speed switching, voltage clamping and protection circuits.
Ultra low forward voltage
AEC-Q101 qualified

Show

PMEG2010EA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-323
Number of Positions	2 Position
Forward Voltage	550 mV
Forward Current	1 A
Max Forward Surge Current (Ifsm)	5 A
Maximum Forward Voltage (Max)	550 mV
Forward Current (Max)	1 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-65 ℃
	Show
Size-Length	1.8 mm
Size-Width	1.35 mm
Size-Height	1.05 mm
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
