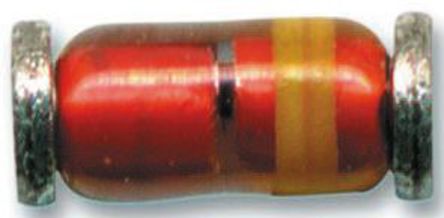

PMLL4148L - NXP
Manufacturer:
NXP
ManyChip's Part#:
MC59561063
Category:
Small Signal Diode
Package:
SOD-80
Datasheet:
Datasheet 3D Model
Description:
NXP PMLL4148L Small Signal Diode, Switching, Single, 100V, 200mA, 1V, 4ns, 4A
Stock Locations:
Availability:
10,656 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.1

Updated at 03/12/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

FEATURES • High-speed diodes • SmAll hermeticAlly seAled glAss SmD pAckAge • High switching speed: mAx. 4 ns • Continuous reVerse VoltAge:mAx. 75 V • RepetitiVe peAk reVerse VoltAge:mAx. 75 V • RepetitiVe peAk forwArd current:mAx. 450 mA. APPLICATIONS • High-speed switching • FAst logic ApplicAtions.

Show

PMLL4148L Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-80
Forward Voltage	1.00 V
Reverse recovery time	4 ns
Forward Current	200 mA
Max Forward Surge Current (Ifsm)	4 A
Maximum Forward Voltage (Max)	1 V
Forward Current (Max)	200 mA
Operating Temperature (Max)	200 ℃
Operating Temperature (Min)	-65 ℃
	Show
Size-Length	3.7 mm
Size-Width	1.6 mm
Size-Height	1.6 mm
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
HK STC License	NLR
