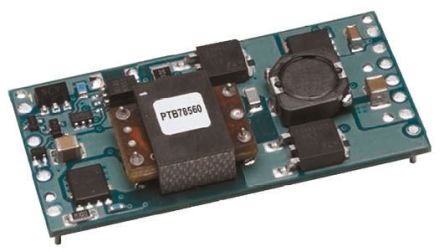

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

PTB78560CAH Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	11 Pin
Case/Package	DIP-11
Supply Voltage (DC)	24.0 V
Power Rating	30 W
Number of Outputs	1 Output
Input Voltage (DC)	18.0V ~ 60.0V
Output Voltage	9V ~ 13.2V
Output Current	8 A
Number of Regulated Outputs	1 Output
Output Power	30 W
Isolation Voltage	1.5 kV
Switching Frequency	400kHz ~ 600kHz
Topology	Buck
Input Voltage (Max)	60 V
Input Voltage (Min)	18 V
Input Voltage (DC Max)	60 V
Input Voltage (DC Min)	18 v
Output Current (Max)	2.5 A
Input Power (Max)	30 W
Input Power (Max)	30 W
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	18V ~ 60V
	Show
Size-Length	51.94 mm
Size-Width	26.54 mm
Size-Height	9.98 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
