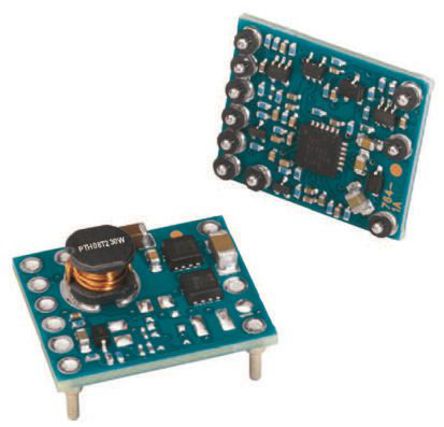

Description

The PTH08T260WAD is a 16.5W through hole-mount non-isolated Adjust Power Module with TurboTrans™. The PTH08T260W is the higher input voltage (4.5 to 14V) version of the PTH04T260W (2.2 to 5.5V), 3A rated, non-isolated power module. This regulator represents the 2nd generation of the PTH series of power modules which include a reduced footprint and improved features. Operating from an input voltage range of 4.5 to 14V, the PTH08T260W requires a single resistor to set the output voltage to any value over the range, 0.69 to 5.5V. The wide input voltage range makes the PTH08T260W particularly suitable for advanced computing and server applications that use a loosely regulated 8 to 12V intermediate distribution bus. Additionally, the wide input voltage range increases design flexibility by supporting operation with tightly regulated 5, 8 or 12V intermediate bus architectures. Output over-current and over-temperature shutdown protects against most load faults.
Output overcurrent protection (non-latching, auto-reset)
Pre-bias start-up
ON/OFF inhibit
Differential output voltage remote sense
Adjustable under-voltage lockout
Auto-Track sequencing
Designed to meet ultra-fast transient, requirements up to 300A/µs
SmartSync technology
±1.5% Total output voltage variation
95% Efficiency

Show

PTH08T260WAD Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	10 Pin
Case/Package	DIP-10
Frequency	300 kHz
Supply Voltage (DC)	5.00 V
Power Rating	16 W
Number of Outputs	1 Output
Input Voltage (DC)	4.50V ~ 14.0V
Output Voltage	0.69V ~ 5.5V
Output Current	3 A
Flammability Rating	UL 94 V-0
Number of Regulated Outputs	1 Output
Topology	Buck
Input Voltage (Max)	14 V
Input Voltage (Min)	4.5 V
Input Voltage (DC Max)	14 V
Input Voltage (DC Min)	4.5 v
Output Voltage (Max)	5.5 V
Output Voltage (Min)	690 mV
Output Current (Max)	3 A
Input Power (Max)	16.5 W
Input Power (Max)	16.5 W
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	1.5 %
Supply Voltage	5 V
Supply Voltage (Max)	14 V
Supply Voltage (Min)	4.5 V
Input Voltage	4.5V ~ 14V
	Show
Size-Length	18.92 mm
Size-Width	15.75 mm
Size-Height	8.5 mm
Weight	2.50 g
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
