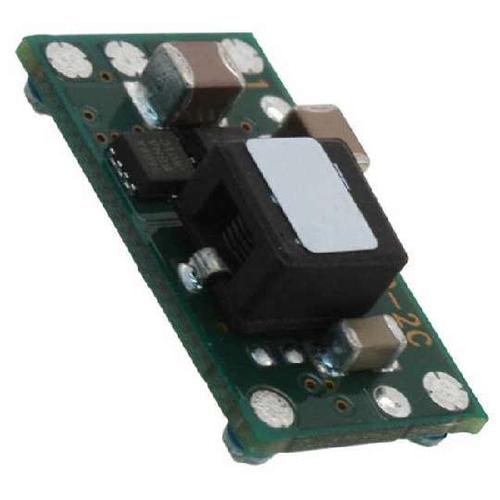

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The PTH12050 series is the smallest non-isolated power modules that features Auto-Track™ Sequencing. Auto-Track simplifies the sequencing of supply voltages in power systems by enabling modules to track each other, or any other external voltage, during power up and power down.
Although small in size (0.87 inches × 0.5 inches), these modules are rated for up to 6 A of output current, and are an ideal choice in applications where space, performance, and a power-up sequencing capability are important attributes.
The series operates from an input voltage of 12-V to provide step-down conversion to a wide range of output voltages. The output voltage of the W-suffix device may set to any voltage over the adjust range, 1.2 V to 5.5 V. The L-suffix device has an adjustment range of 0.8 V to 1.8 V. The output voltage is set within the adjustment range using a single external resistor.
Other operating features include an on/off inhibit, output voltage adjust (trim), and output overcurrent protection. For high efficiency, these parts employ a synchronous rectifier output stage.
Target applications include telecom, industrial, and general purpose circuits, including low-power dual-voltage systems that use the TMS320™ DSP family, microprocessor, ASIC, or FPGA.

Show

PTH12050WAS Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SMD-6
Frequency	320 kHz
Supply Voltage (DC)	10.8V (min)
Power Rating	33 W
Number of Outputs	1 Output
Input Voltage (DC)	13.2 V
Output Voltage	1.2V ~ 5.5V
Output Current	6 A
Number of Regulated Outputs	1 Output
Switching Frequency	380 kHz
Topology	Buck
Input Voltage (Max)	13.2 V
Input Voltage (Min)	10.8 V
Input Voltage (DC Max)	13.2 V
Input Voltage (DC Min)	10.8 v
Output Voltage (Max)	5.5 V
Output Voltage (Min)	1.2 V
Output Current (Max)	6 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	10.8V ~ 13.2V
	Show
Size-Length	22.1 mm
Size-Width	13.59 mm
Size-Height	8.5 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance Edition	2015/06/15
