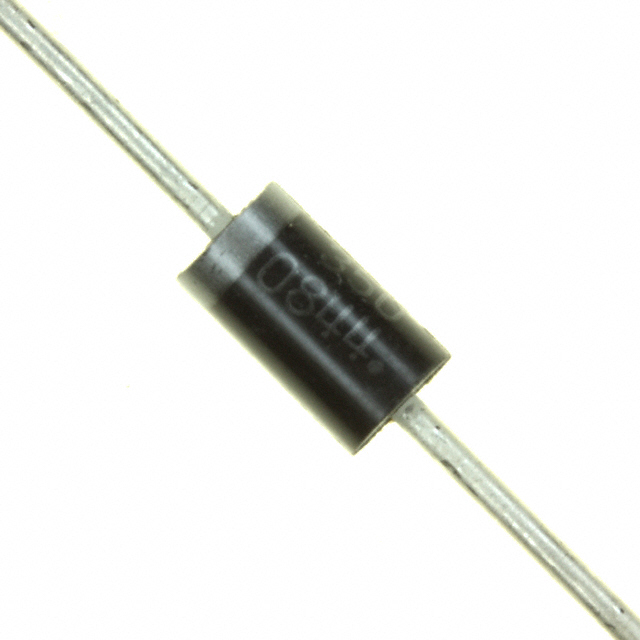

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The Axial Lead Schottky Rectifier employs the Schottky Barrier principle in a large area metal-to-silicon power diode. State of the art geometry features epitaxial construction with oxide passivation and metal overlap contact. It is ideally suited for use as rectifiers in low voltage, high frequency inverters, free wheeling diodes and polarity protection diodes.
Features
---
|
High Current Capability
Low Stored Charge, Majority Carrier Conduction
Low Power Loss/High Efficiency
Highly Stable Oxide Passivated Junction
Guard-Ring for Stress Protection
Low Forward Voltage
High Surge Capacity
Mechanical Characteristics:
Case: Epoxy, Molded
Weight: 1.1 gram (approximately)
Finish: All External Surfaces Corrosion Resistant and
Terminal Leads are Readily Solderable
Lead and Mounting Surface Temperature for Soldering Purposes:
220?C Max. for 10 Seconds, 1/16, from case
Shipped in plastic bags, 500 per bag
Available Tape and Reeled, 1500 per reel,
by adding a "RL" suffix to the part number
Polarity: Cathode indicated by Polarity Band
ESD Protection: Human Body Model > 4000 V (Class 3)
ESD Protection: Machine Model > 400 V (Class C)
These are Pb-Free Devices

Show

80SQ045N Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	DO-201AA
Voltage Rating (DC)	45.0 V
Current Rating	8.00 A
Output Current	≤8.00 A
Forward Voltage	550mV @8A
Polarity	Standard
Forward Current	8 A
Max Forward Surge Current (Ifsm)	140 A
Maximum Forward Voltage (Max)	550mV @8A
Forward Current (Max)	8 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	65 ℃
	Show
Size-Length	9.5 mm
Size-Width	5.3 mm
Size-Height	5.3 mm
Operating Temperature	65℃ ~ 125℃
Product Lifecycle Status	Unknown
Packaging	Bulk
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
