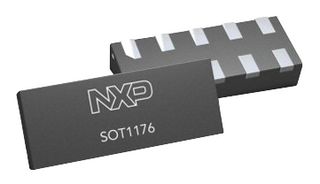

Image is for your reference only,please check specifications for details

Updated at 14/07/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The PUSB3F96 is an ESD Protection Device for ultra-high-speed interfaces. It is designed to protect high-speed interfaces such as SuperSpeed USB, High-Definition Multimedia Interface (HDMI), DisplayPort, external Serial Advanced Technology Attachment (eSATA) and Low Voltage Differential Signalling (LVDS) interfaces against electrostatic discharge (ESD). The device includes four high-level ESD protection diode structures for ultra-high-speed signal lines. All signal lines are protected by a special diode configuration offering ultra-low line capacitance of only 0.5pF. This diode utilizes unique snap-back structure in order to provide protection to downstream components from ESD voltages up to ±10kV contact exceeding IEC 61000-4-2, level 4.
System ESD protection for USB 2.0 and SuperSpeed USB 3.0, HDMI 2.0, DisplayPort, eSATA and LVDS
Matched 0.5mm trace spacing
Signal lines with <=0.05pF matching capacitance between signal pairs
Line capacitance of only 0.5pF for each channel
Design-friendly pass-through signal routing

Show

PUSB3F96 Specifications
