PVZ2A104C04R00 muRata - Potentiometer

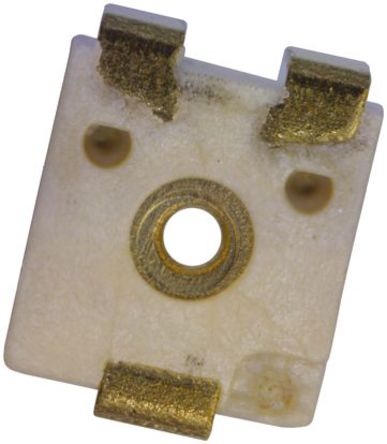

Image is for your reference only,please check specifications for details

PVZ2A104C04R00 - muRata
Manufacturer:
muRata
ManyChip's Part#:
MC104056333
Category:
Potentiometer
Datasheet:
Datasheet 3D Model
Description:
Резисторный подстроечный элемент с углеродистой пленкой 100 кОм ±30% 0,05 Вт (1/20 Вт) 1 (электрический) / 1 (механический) оборот (2,1 × 2,7 × 2 мм) SMD J-образный вывод, упаковка на ленте и катушке
Stock Locations:
Availability:
1,243 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.21

Updated at 16/09/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Серия PVZ2 — это SMD открытые подстроечные потенциометры размером 2 мм с крестообразным пазом для приводного винта, обеспечивающим автоматическую регулировку в процессе сборки и высокую точность настройки. Они подходят для модулей захвата, пейджеров, ЖК-дисплеев, PHS и DVC.
Контакты с золотым покрытием обеспечивают возможность плотного монтажа на печатную плату
Двухкомпонентная конструкция обеспечивает отличное качество
Специальная смоляная подложка позволяет выдерживать высокие пиковые температуры при оплавлении пайки

Show

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Capacitance Tolerance	±30 %
Power Rating	50 mW
Resistance	100 kΩ
Resistance Tolerance	±30 %
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-25 ℃
	Show
Size-Length	2.1 mm
Size-Width	2.7 mm
Size-Height	0.8 mm
Operating Temperature	-25℃ ~ 85℃
Temperature Coefficient	±500 ppm/℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
