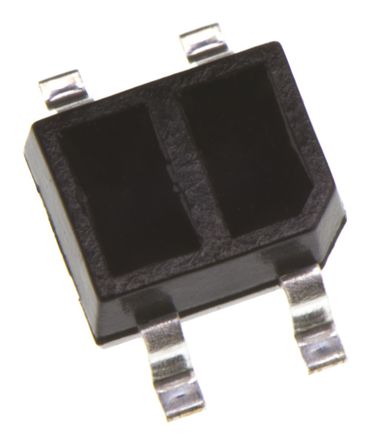

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The QRE1113GR is a miniature Reflective Object Sensor with SMT gull wing.
- Phototransistor Output
- No Contact Surface Sensing
- Gull Wing Lead from Style
- Through hole (QRE1113)SMT gullwing (QRE1113GR) two Leadform Options
QRE1113GR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 4 Pin |
| Case/Package | SMD-4 |
| Supply Voltage (DC) | 1.70 V |
| Operating Voltage | 1.70 V |
| Current Rating | 50.0 A |
| Output Voltage | 30 V |
| Number of Channels | 1 Channel |
| Number of Positions | 4 Position |
| Forward Voltage | 1.2 V |
| Wavelength | 940 nm |
| Input Current | 20 mA |
| Peak Wavelength | 940 nm |
| Power Dissipation | 75 mW |
| Rise Time | 20 µs |
| Breakdown Voltage (Collector to Emitter) | 30 V |
| Forward Current | 50 mA |
| Output Voltage (Max) | 20 V |
| Reverse Breakdown Voltage | 5 V |
| Forward Current (Max) | 50 mA |
| Fall Time | 20 µs |
| Fall Time (Max) | 20000 ns |
| Fall Time (Max) | 20000 ns |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Power Dissipation (Max) | 75 mW |
| Show | |
| Size-Length | 3.6 mm |
| Size-Width | 2.9 mm |
| Size-Height | 1.7 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | ECL99 |
