Description

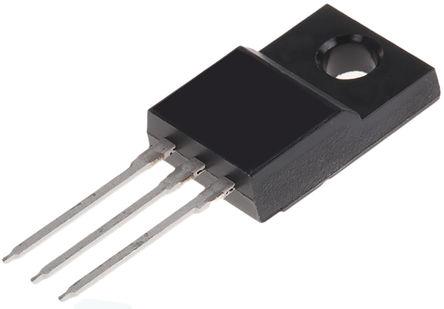

Diode Array 1 Pair Common Cathode Standard 200V 5A Through Hole TO-220-3 Full Pack

Show

RF1001T2D Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Voltage Rating (DC)	200 V
Current Rating	10.0 A
Forward Voltage	930mV @5A
Reverse recovery time	30 ns
Forward Current	10000 mA
Max Forward Surge Current (Ifsm)	80 A
Maximum Forward Voltage (Max)	930 mV
Forward Current (Max)	10 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature	150℃ (Max)
	Show
Size-Length	10 mm
Size-Width	4.5 mm
Size-Height	15 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Not For New Designs
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
