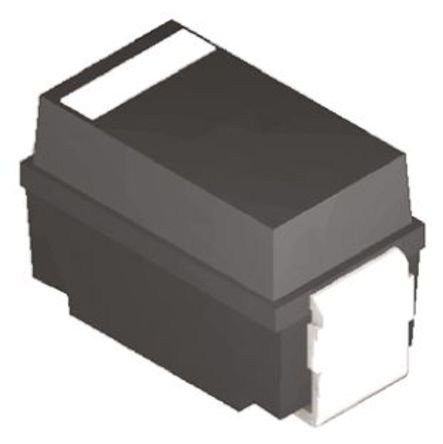

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
RGF1G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | DO-214AC |
| Voltage Rating (DC) | 400 V |
| Current Rating | 1.00 A |
| Capacitance | 8.50 pF |
| Output Current | ≤1.00 A |
| Forward Voltage | 1.3V @1A |
| Polarity | Standard |
| Power Dissipation | 1.76 W |
| Thermal Resistance | 28℃/W (RθJL) |
| Reverse recovery time | 150 ns |
| Maximum Forward Voltage (Max) | 1.3V @1A |
| Forward Current (Max) | 1 A |
| Operating Temperature (Max) | 175 ℃ |
| Operating Temperature (Min) | -65 ℃ |
| Junction Temperature | -65℃ ~ 175℃ |
| Power Dissipation (Max) | 1760 mW |
| Show | |
| Size-Length | 4.75 mm |
| Size-Width | 2.95 mm |
| Size-Height | 2.2 mm |
| Operating Temperature | -65℃ ~ 175℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
