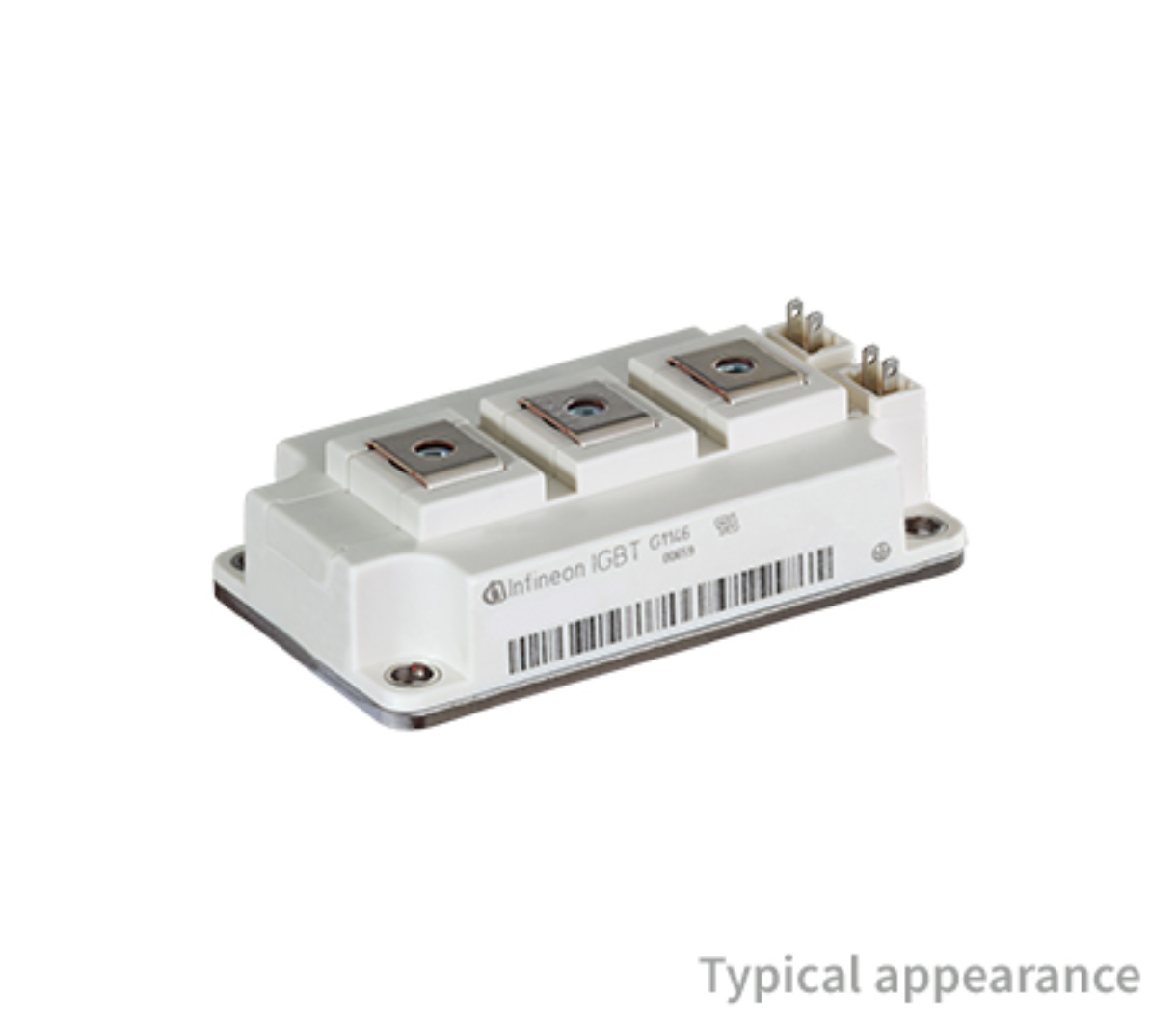

Image is for your reference only,please check specifications for details

FF400R07KE4 - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC118800300
Category:
IGBT Transistor, IGBT Module
Package:
Module
Datasheet:
Datasheet 3D Model
Description:
INFINEON FF400R07KE4 IGBT Array & Module Transistor, Dual NPN, 485A, 1.55V, 1.25kW, 650V, Module
Stock Locations:
Availability:
229 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 242.85

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

* Increased blocking voltage capability to 650V * Extended Operation Temperature T(vj op) * High Short Circuit Capability, Self Limiting Short Circuit Current * 2.5 kV AC 1min Insulation * Package with CTI > 400 * High Creepage and Clearance Distances * Isolated Base Plate * Standard Housing

Show

FF400R07KE4 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	7 Pin
Case/Package	Module
Power Rating	1250 W
Number of Positions	7 Position
Polarity	NPN
Power Dissipation	1.25 kW
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
	Show
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
