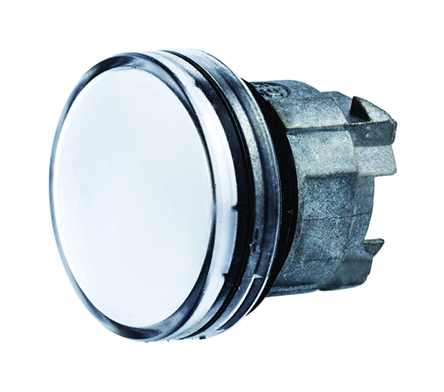

Image is for your reference only,please check specifications for details

ZB4BV013 - Schneider Electric
Manufacturer:
Schneider Electric
ManyChip's Part#:
MC15915200
Category:
LED Indicator Array
Package:
Module
Datasheet:
Datasheet 3D Model
Description:
Indicator part; Head w/White lens; FitsZB4BV mnt base and integral LED module
Stock Locations:
Availability:
51 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 8.04

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ZB4BV013 from Schneider is an Ø 22mm pilot light head with plain white lens for integral LED.
Chromium plated metal bezel
Operating temperature range from -25°C to 70°C
IP66 conforming to IEC 60529 standard
NEMA 4X, NEMA 13 rated
For use with Harmony XB4 switches

Show

ZB4BV013 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Panel
Case/Package	Module
Contact Current Rating	6.00 A
	Show
Size-Width	22 mm
Color	White
Operating Temperature	-25℃ ~ 70℃
Housing Material	Metal
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	Non-Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
