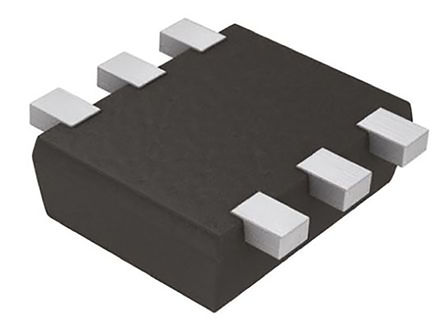

Image is for your reference only,please check specifications for details
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- RSB12JS2 Series 14.4 V 0.1 uA 150 mW SMD ESD Protection Diode - SC-75A
RSB12JS2T2R Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 6 Pin |
| Case/Package | SOT-563 |
| Voltage Rating (DC) | 12.0 V |
| Operating Voltage | 12.0 V |
| Capacitance | 1 pF |
| Power Rating | 150 mW |
| Breakdown Voltage | 12.0 V |
| Number of Channels | 4 Channel |
| Number of Positions | 6 Position |
| Power Dissipation | 150 mW |
| Test Current | 5 mA |
| Max Breakdown Voltage | 14.4 V |
| Zener Voltage | 12 V |
| Peak Pulse Power | 0.15 W |
| Min Breakdown Voltage | 9.6 V |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Junction Temperature | 150 ℃ |
| Power Dissipation (Max) | 150 mW |
| Show | |
| Size-Length | 1.6 mm |
| Size-Width | 1.2 mm |
| Size-Height | 0.4 mm |
| Size-Thickness | 500 µm |
| Operating Temperature | -55℃ ~ 150℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
