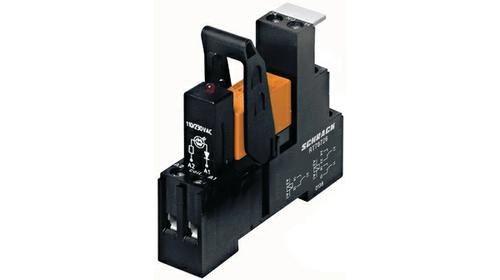

Image is for your reference only,please check specifications for details
- RT4S4LC4 - TE Connectivity
-
Manufacturer:TE Connectivity
-
ManyChip's Part#:MC12957157
-
Category:Power Relay
-
Package:Module
-
Datasheet:Datasheet 3D Model
-
Description:Электромеханическое реле, 24 В пост. тока, 1,44 кОм, 8 А, DPDT (двухполюсный переключающий), габариты 77 × 15,8 × 69 мм, розетка, реле общего назначения.
-
Stock Locations:
-
Availability:238 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 9.4
Updated at 16/09/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Компания Tyco Electronics теперь предлагает несколько своих популярных штекерных реле SCHRACK в «комплектах». Каждый комплект включает реле, розетку и фиксатор. Некоторые также содержат аксессуары, такие как защитные цепи, светодиоды и маркировочные бирки. Это упрощает заказ и помогает избежать ситуаций, когда для данного реле может быть заказана неправильная розетка или когда количество различных компонентов не соответствует.
- Комплекты доступны для реле серий SNR, XT, PT и RT. Они применяются на DIN-рейках в панелях управления промышленного оборудования, системах альтернативной энергетики, лифтах и другом коммерческом оборудовании.
- **Особенности:**
- * Несколько компонентов можно заказать по одному номеру детали
- * Быстрее и проще, чем сборка компонентов по отдельности
- * Комплекты можно просто защелкнуть на DIN-рейку
- * Предотвращает ситуации, когда может быть заказана неправильная розетка
RT4S4LC4 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | DIN Rail |
| Number of Pins | 8 Pin |
| Case/Package | Module |
| Current Rating | 8 A |
| Power Rating | 400 mW |
| Contacts Type | DPDT |
| Flammability Rating | UL 94 V-0 |
| Power Consumption | 400 mW |
| Contact Current Rating | 8 A |
| Coil Voltage | 24 VDC |
| Coil Current | 16.7 mA |
| Coil Resistance | 1.44 kΩ |
| Carry Current | 8.00 A |
| Current Rating (Max) | 8 A |
| Coil Voltage (DC) | 24 V |
| Switching Current (Max) | 8 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -20 ℃ |
| Voltage Rating | 400 VAC |
| Show | |
| Size-Length | 77 mm |
| Size-Width | 15.8 mm |
| Size-Height | 69 mm |
| Contact Material | Silver Nickel |
| Operating Temperature | -20℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ELV Compliant | Compliant |
| HTS Code | 8536490080 |
| ECCN Code | EAR99 |
