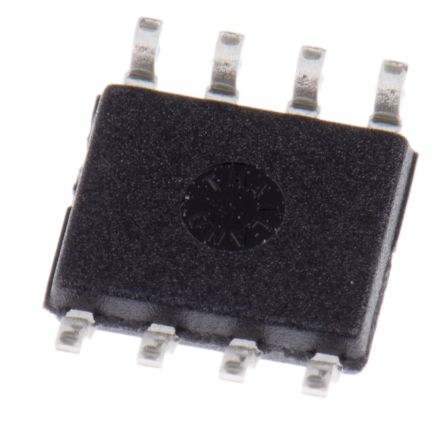

Image is for your reference only,please check specifications for details
Updated at 23/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The RV4141A is a low-power controller for AC-receptacle, ground-fault circuit interrupters. These devices detect hazardous current paths to ground and ground to neutral faults. The circuit interrupter then disconnects the load from the line before a harmful or lethal shock occurs.Internally, the RV4141A contains a diode rectifier, shunt regulator, precision sense amplifier, current reference, time-delay circuit, and SCR driver.Two sense transformers, SCR, solenoid, three resistors, and four capacitors complete the design of the basic circuit interrupter. The simple layout and minimum component count ensure ease of application and long-term reliability. Features not found in other GFCI controllers include a low offset voltage sense amplifier, eliminating the need for a coupling capacitor between the sense transformer and sense amplifier, and an internal rectifier to eliminate high-voltage rectifying diodes.The RV4141A is powered only during the positive half period of the line voltage, but can sense current faults independent of its phase relative to the line voltage. The gate of the SCR is driven only during the positive half cycle of the line voltage.
- Features
- ---
- |
- Powered from the AC line
- Built-in rectifier
- Direct interface to SCR
- 500μA quiescent current
- Precision sense amplifier
- Adjustable time delay
- Minimum external components
- Meets UL943 requirements
- Compatible with 110V or 220V systems
RV4141AMT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | SOIC-8 |
| Supply Current | 10 mA |
| Input Current | 30 nA |
| Quiescent Current | 0.5 mA |
| Bandwidth | 3 MHz |
| Input Voltage (Max) | 14 V |
| Input Voltage (Min) | 12 V |
| Operating Temperature (Max) | 80 ℃ |
| Operating Temperature (Min) | -35 ℃ |
| Show | |
| Size-Length | 5 mm |
| Size-Height | 1.5 mm |
| Operating Temperature | -35℃ ~ 80℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
