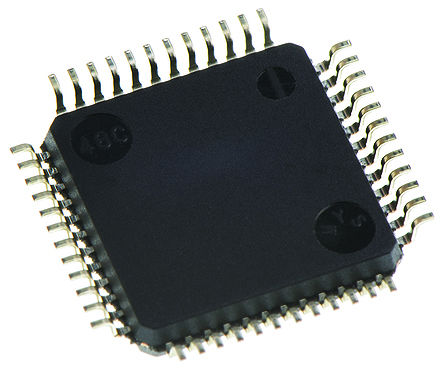

Image is for your reference only,please check specifications for details
- STM8L052C6T6 - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC97140
-
Category:Microcontroller, MCU IC
-
Package:LQFP-48
-
Datasheet:Datasheet 3D Model
-
Description:MCU 8Bit STM8 CISC 32KB Flash 2.5V/3.3V 48Pin LQFP Tray
-
Stock Locations:
-
Availability:104 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.47
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The medium-density value line STM8L052C6 devices are members of the STM8L ultra-low-power 8-bit family.
- The value line STM8L05xxx ultra-low-power family features the enhanced STM8 CPU core providing increased processing power (up to 16 MIPS at 16 MHz) while maintaining the advantages of a CISC architecture with improved code density, a 24-bit linear addressing space and an optimized architecture for low power operations.
- The family includes an integrated debug module with a hardware interface (SWIM) which allows non-intrusive In-application debugging and ultra-fast Flash programming.
- Medium-density value line STM8L052C6 microcontrollers feature embedded data EEPROM and low-power, low-voltage, single-supply program Flash memory.
- All devices offer 12-bit ADC, real-time clock, 16-bit timers, one 8-bit timer as well as standard communication interface such as SPI, I2C, USART and 4x28-segment LCD. The 4x 28-segment LCD is available on the medium-density value line STM8L052C6.
- The STM8L052C6 operates from 1.8 V to 3.6 V and is available in the -40 to +85 °C temperature range.
- The modular design of the peripheral set allows the same peripherals to be found in different ST microcontroller families including 32-bit families. This makes any transition to a different family very easy, and simplified even more by the use of a common set of development tools.
- All value line STM8L ultra-low-power products are based on the same architecture with the same memory mapping and a coherent pinout.
- **Key Features**
- Operating conditions
- Operating power supply: 1.8 V to 3.6 V
- Temperature range: -40 °C to 85 °C
- Low-power features
- Five low-power modes: Wait, Low-power run (5.1 μA), Low-power wait (3 μA), Active-halt with full RTC (1.3 μA), Halt (350 nA)
- Consumption: 195 μA/MHz + 440 μA
- Ultra-low leakage per I/0: 50 nA
- Fast wakeup from Halt: 4.7 μs
- Advanced STM8 core
- Harvard architecture and 3-stage pipeline
- Max freq. 16 MHz, 16 CISC MIPS peak
- Up to 40 external interrupt sources
- Reset and supply management
- Low-power, ultra-safe BOR reset with five selectable thresholds
- Ultra-low-power POR/PDR
- Programmable voltage detector (PVD)
- Clock management
- 32 kHz and 1 to 16 MHz crystal oscillator
- Internal 16 MHz factory-trimmed RC
- Internal 38 kHz low consumption RC
- Clock security system
- Low-power RTC
- BCD calendar with alarm interrupt
- Auto-wakeup from Halt w/ periodic interrupt
- LCD: up to 4x28 segments w/ step-up converter
- Memories
- 32 KB Flash program memory and 256 bytes data EEPROM with ECC, RWW
- Flexible write and read protection modes
- 2 Kbytes of RAM
- DMA
- Four channels supporting ADC, SPI, I2C, USART, timers
- One channel for memory-to-memory
- 12-bit ADC up to 1 Msps/25 channels
- Internal reference voltage
- Timers
- Two 16-bit timers with two channels (used as IC, OC, PWM), quadrature encoder
- One 16-bit advanced control timer with three channels, supporting motor control
- One 8-bit timer with 7-bit prescaler
- Two watchdogs: one Window, one Independent
- Beeper timer with 1-, 2- or 4-kHz frequencies
- Communication interfaces
- Synchronous serial interface (SPI)
- Fast I2 C 400 kHz SMBus and PMBus
- USART (ISO 7816 interface and IrDA)
- Up to 41 I/Os, all mappable on interrupt vectors
- Development support
- Fast on-chip programming and non- intrusive debugging with SWIM
- Bootloader using USART
STM8L052C6T6 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 48 Pin |
| Case/Package | LQFP-48 |
| Frequency | 16 MHz |
| Operating Voltage | 1.8V ~ 3.6V |
| Number of Positions | 48 Position |
| RAM Memory Size | 2 KB |
| Number of Bits | 8 Bit |
| Power Dissipation | 288 mW |
| FLASH Memory Size | 32 KB |
| Number of ADCs | 1 ADC |
| Number of Inputs and Outputs | 41 Input IO |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 288 mW |
| Supply Voltage | 1.8V ~ 3.6V |
| Supply Voltage (Max) | 3.6 V |
| Supply Voltage (Min) | 1.8 V |
| Show | |
| Size-Length | 7.2 mm |
| Size-Width | 7.2 mm |
| Size-Height | 1.4 mm |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
