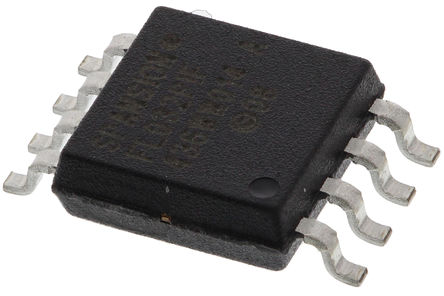

Image is for your reference only,please check specifications for details

S25FL032P0XMFI011 - Spansion
Manufacturer:
Spansion
ManyChip's Part#:
MC52602754
Category:
Flash Memory, Flash
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
MEMORY, FLASH, 32Mb, 3V, SPI, 8SOIC; Memory Size: 32Mbit; Supply Voltage Range: 2.7V to 3.6V; Memory Case Style: SOIC...
Stock Locations:
Availability:
4,341 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.82

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The S25FL032P0XMFI011 is a 32Mbit CMOS flash memory with SPI multi I/O bus in 8 pin SOIC package. The device consists of 64 uniform 64KB sectors with the two (top or bottom) 64KB sectors further split up into thirty two 4KB sub sectors. The S25FL032P0XMFI011 is fully backward compatible with S25FL032A device. The device accepts data written to SI (serial input) and outputs data on SO (serial output). It is designed to be programmed in-system with standard system 3V VCC supply. The memory can be programmed 1 to 256bytes at a time using page program command. It supports sector erase and bulk erase commands. The device requires only 3V power supply (2.7V to 3.6V) for both read and write functions. Internally generated and regulated voltages are provided for the program operations.
Clock rate of 104MHz
Positive power supply voltage from 2.7V to 3.6V
Power saving standby mode
CFI (common flash interface) compliant
One time programmable (OTP) area for permanent, secure identification
JEDEC standard two byte electronic signature
Data retention of 20 years
Cycling endurance of 100000 cycles per sector
Program operations are on page by page basis
Ambient operating temperature range from -40°C to 85°C

Show

S25FL032P0XMFI011 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Supply Voltage (DC)	2.70V (min)
Supply Current	38 mA
Number of Positions	8 Position
Clock Speed	104 MHz
Memory Size	4000000 B
Access Time(Max)	8 ns
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.7V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	2.7 V
	Show
Size-Length	5.28 mm
Size-Width	5.283 mm
Size-Height	1.91 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
HK STC License	NLR
