Description
- Overview
- The SC16IS740/750/760 is a slave I²C-bus/SPI interface to a single-channel high performance UART. It offers data rates up to 5 Mbit/s and guarantees low operating and sleeping current. The SC16IS750 and SC16IS760 also provide the application with 8 additional programmable I/O pins. The device comes in very small HVQFN24, TSSOP24 (SC16IS750/760) and TSSOP16 (SC16IS740) packages, which makes it ideally suitable for handheld, battery operated applications. This family of products enables seamless protocol conversion from I²C-bus or SPI to and RS-232/RS-485 and are fully bidirectional.
- The SC16IS760 differs from the SC16IS750 in that it supports SPI clock speeds up to 15 Mbit/s instead of the 4 Mbit/s supported by the SC16IS750, and in that it supports IrDA SIR up to 1.152 Mbit/s. In all other aspects, the SC16IS760 is functionally and electrically the same as the SC16IS750. The SC16IS740 is functionally and electrically identical to the SC16IS750, with the exception of the programmable I/O pins which are only present on the SC16IS750.
- The SC16IS740/750/760’s internal register set is backward-compatible with the widely used and widely popular 16C450. This allows the software to be easily written or ported from another platform.
- The SC16IS740/750/760 also provides additional advanced features such as auto hardware and software flow control, automatic RS-485 support, and software reset. This allows the software to reset the UART at any moment, independent of the hardware reset signal.
- MoreLess
- ## Features
- **General features**
- * Single full-duplex UART
- * Selectable I²C-bus or SPI interface
- * 3.3 V or 2.5 V operation
- * Industrial temperature range: -40 ºC to +95 ºC
- * 64 bytes FIFO (transmitter and receiver)
- * Fully compatible with industrial standard 16C450 and equivalent
- * Baud rates up to 5 Mbit/s in 16× clock mode
- * Auto hardware flow control using RTS/CTS
- * Auto software flow control with programmable Xon/Xoff characters
- * Single or double Xon/Xoff characters
- * Automatic RS-485 support (automatic slave address detection)
- * Up to eight programmable I/O pins (SC16IS750 and SC16IS760 only)
- * RS-485 driver direction control via RTS signal
- * RS-485 driver direction control inversion
- * Built-in IrDA encoder and decoder interface
- * SC16IS750 supports IrDA SIR with speeds up to 115.2 kbit/s
- * SC16IS760 supports IrDA SIR with speeds up to 1.152 Mbit/s
- * Software reset
- * Transmitter and receiver can be enabled/disabled independent of each other
- * Receive and Transmit FIFO levels
- * Programmable special character detection
- * Fully programmable character formatting
- * 5-bit, 6-bit, 7-bit or 8-bit character
- * Even, odd, or no parity
- * 1, 1½, or 2 stop bits
- * Line break generation and detection
- * Internal Loopback mode
- * Sleep current less than 30 µA at 3.3 V
- * Industrial and commercial temperature ranges
- * Available in HVQFN24, TSSOP24 (SC16IS750/760) and TSSOP16 (SC16IS740) packages
- **I²C-bus features**
- * Noise filter on SCL/SDA inputs
- * 400 kbit/s maximum speed
- * Compliant with I²C-bus fast speed
- * Slave mode only
- **SPI features**
- * SC16IS750 supports 4 Mbit/s maximum SPI clock speed
- * SC16IS760 supports 15 Mbit/s maximum SPI clock speed
- * SPI Mode 0
- ## Features

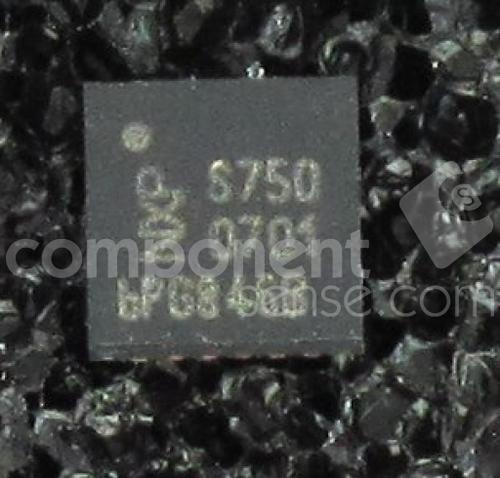

SC16IS750IBS Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 24 Pin |
| Case/Package | HVQFN-24 |
| Supply Voltage (DC) | 3.60V (max) |
| Data Rate | 5.00 Mbps |
| Show | |
| Product Lifecycle Status | Unknown |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
