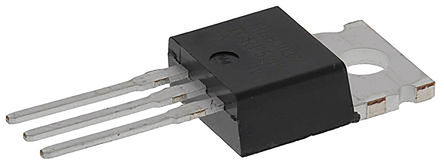

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The SCT2120AFC is a N-channel SiC Power MOSFET with fast switching speed and reverse recovery. It is suitable for solar inverters, DC-to-DC converters, SMPS, induction heating and motor drive applications.
Low ON-resistance
Easy to parallel
Simple to drive

Show

SCT2120AFC Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.12 Ω
Polarity	N-Channel
Power Dissipation	165 W
Threshold Voltage	4 V
Drain to Source Voltage (Vds)	650 V
Rise Time	31 ns
Input Capacitance (Ciss)	1200pF @500V(Vds)
Fall Time	19 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	165W (Tc)
	Show
Size-Length	10.26 mm
Size-Width	8.63 mm
Size-Height	4.45 mm
Operating Temperature	175℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
