SD12T1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC4860434
Category:
TVS Diode
Package:
SOD-323-2
Datasheet:
Datasheet 3D Model
Description:

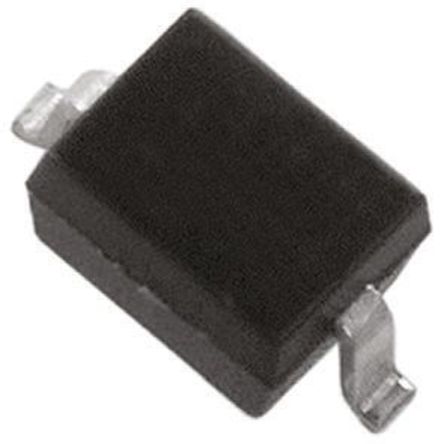

ON SEMICONDUCTOR SD12T1G TVS Diode, SD05T1 Series, Unidirectional, 12V, 25V, SOD-323, 2Pins
Stock Locations:
Availability:
1,791 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.1

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Protect users and systems from electrostatic discharge with this tvs SD12T1G ESD protection device from ON Semiconductor. This ESD diode has a maximum ESD protection device voltage of 30@HBM kV. This device"s maximum clamping voltage is 25 V. This ESD diode has a minimum operating temperature of -55 °C and a maximum of 150 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It is made in a single configuration. Its capacitance value is 150 pF.

Show

SD12T1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-323-2
Voltage Rating (DC)	12.0 V
Operating Voltage	12 V
Capacitance	150 pF
Power Rating	350 W
Breakdown Voltage	13.3 V
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	2 Position
Power Dissipation	350 W
Clamping Voltage	25 V
Test Current	1 mA
Max Breakdown Voltage	15.75 V
Peak Pulse Power	350 W
Min Breakdown Voltage	13.3 V
Reverse Breakdown Voltage	13.3 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature	-55℃ ~ 150℃
Power Dissipation (Max)	300 mW
	Show
Size-Length	1.8 mm
Size-Width	1.35 mm
Size-Height	1 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
HK STC License	NLR
