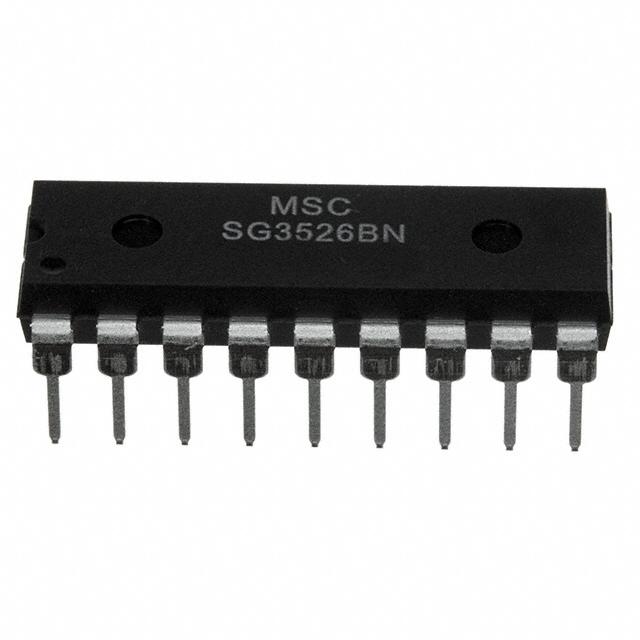

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- FEATURES
- • 8 to 35 volt operation
- • 5V low drift 1% bandgap reference
- • 1Hz to 500KHz oscillator range
- • Dual 100mA source/sink
- • Digital current limiting
- • Double pulse suppression
- • Programmable deadtime
- • Improved undervoltage lockout
- • Single pulse metering
- • Programmable soft-start
- • Wide current limit common mode range
- • TTL/CMOS compatible logic ports
- • Symmetry correction capability
- • Guaranteed 6 unit synchronization
- • Shoot thru currents less than 100mA
- • Improved shutdown delay
- • Improved rise and fall time
- HIGH RELIABILITY FEATURES - SG1526B
- ♦Available to MIL-STD-883
- ♦MIL-M38510/12603BVA - JAN1526BJ
- ♦Radiation data available
- ♦LMI level "S" processing available
SG3526BN Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 16 Pin |
| Case/Package | DIP-18 |
| Supply Voltage (DC) | 35.0V (max) |
| Number of Outputs | 2 Output |
| Quiescent Current | 18.0 mA |
| Rise Time | 300 ns |
| Switching Frequency | 1Hz ~ 500kHz |
| Duty Cycle | 49 % |
| Maximum Duty Cycle | 0.49 |
| Fall Time | 100 ns |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Supply Voltage | 8V ~ 35V |
| Show | |
| Operating Temperature | 0℃ ~ 70℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | Compliant with Exemption |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
