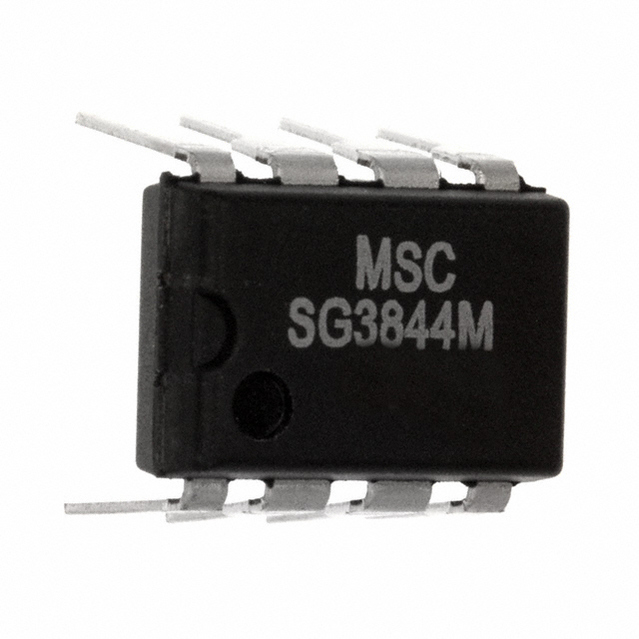

- SG3844M - Microsemi
-
Manufacturer:Microsemi
-
ManyChip's Part#:MC68897600
-
Category:AC to DC Converter, AC/DC Power Module
-
Package:DIP-8
-
Datasheet:Datasheet 3D Model
-
Description:AC to DC Switching Converter Off-Line Switcher 500kHz 8Pin PDIP
-
Stock Locations:
-
Availability:494 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 2.42
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- This SG3844M current controller by Microsemi perfect for two part systems which have two separate current needs. Its typical operating supply voltage is 30 V. Its single PWM output produces a current of 200 mA. This part offers a switching frequency of 500 kHz in order to work properly. This current mode controller"s maximum duty cycle is 50 %. This device has a typical operating supply voltage of 30 V. This current mode controller has an operating temperature range of 0 °C to 70 °C.
SG3844M Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 8 Pin |
| Case/Package | DIP-8 |
| Supply Voltage (DC) | 30.0 V |
| Number of Outputs | 1 Output |
| Output Voltage | 5 V |
| Output Current | 1 A |
| Number of Channels | 1 Channel |
| Quiescent Current | 11.0 mA |
| Switching Frequency | 100Hz ~ 500kHz |
| Duty Cycle | 48 % |
| Maximum Duty Cycle | 50 % |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Supply Voltage | 8.2V ~ 30V |
| Show | |
| Operating Temperature | 0℃ ~ 70℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Contains Lead |
