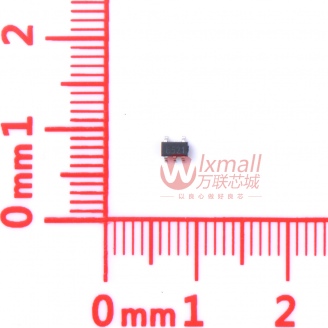

Image is for your reference only,please check specifications for details

Updated at 17/07/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

PRODUCT DESCRIPTION
The SGM8521 (single)， SGM8522 (dual) and SGM8524 (quad) are rail-to-rail input and output voltage feedback amplifiers offering low cost. They have a wide input common-mode voltage range and output voltage swing, and take the minimum operating supply voltage down to 2.1V and the maximum recommended supply voltage is 5.5 V. All are specified over the extended –40°C to +125°C temperature range.
The SGM8521/8522/8524 provide150KHz bandwidth at a low current consumption of 4.7µA per amplifier. Very low input bias currents of 0.5pA, enable the SGM8521/8522/8524 to be used for integrators, photodiode amplifiers, and piezoelectric sensors. Rail-to-Rail inputs and outputs are useful to designers buffering ASIC in single-supply systems.
FEATURES
• Low Cost
• Rail-to-Rail Input and Output
0.8mV Typical VOS
• Unity Gain Stable
• Gain Bandwidth Product: 150KHz
• Very low input bias currents : 0.5pA
• Operates on 2.1 V to 5.5 V Supplies
• Input Voltage Range = - 0.1 V to +5.6 V with VS = 5.5V
• Low Supply Current: 4.7µA/Amplifier
• Small Packaging
SGM8521 Available in SO-8 and SOT23-5
SGM8522 Available in SO-8 and MSOP-8
SGM8524 Available in SO-16, SO-14 and
TSSOP-16
APPLICATIONS
ASIC Input or Output Amplifier
Sensor Interface
Piezo Electric Transducer Amplifier
Medical Instrumentation
Mobile Communication
Audio Output
Portable Systems
Smoke Detectors
Mobile Telephone
Notebook PC
PCMCIA cards
Battery-Powered equipment

Show
