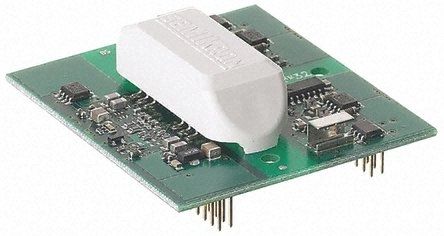

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The SKYPER 32 R is a Dual IGBT Driver IC, the 32-core constitutes an interface between IGBT modules and the controller. The driver is developed according to the requirements of UL standard. This core is a half bridge driver. Basic functions for driving, potential separation and protection are integrated in the driver. Thus it can be used to build up a driver solution for IGBT module.
Two output channels
Integrated potential free power supply for secondary side
Short pulse suppression
Under voltage protection
Drive interlock (dead time) top/bottom (DT)
Shutdown input
Up to 1200VDC bus voltage

Show

SKYPER 32 R Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	40 Pin
Case/Package	PCB
Supply Voltage (DC)	14.4V (min)
Number of Outputs	2 Output
Output Current	0.05 A
Number of Positions	40 Position
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	14.4.15.6 VDC
Supply Voltage (Max)	15.6 V
Supply Voltage (Min)	14.4 V
	Show
Size-Length	57 mm
Size-Width	64 mm
Size-Height	19 mm
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
