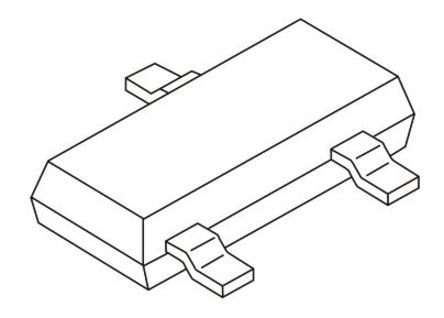

SL12T1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC11160000
Category:
TVS Diode
Package:
SOT-23-3
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR SL12T1G TVS Diode, SL12 Series, Unidirectional, 12V, 19V, SOT-23, 3Pins
Stock Locations:
Availability:
204 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.07

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

With ON Semiconductor"s tvs SL12T1G ESD protection device you will protect your circuits from electrostatic discharge while ensuring signal integrity. This ESD diode has a maximum ESD protection device voltage of 16@Air Gap/18@Contact Disc kV. This device"s maximum clamping voltage is 24 V. This ESD diode has a minimum operating temperature of -55 °C and a maximum of 150 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. Its capacitance value is 5 pF. It is made in a single configuration.

Show

SL12T1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-23-3
Capacitance	5 pF
Halogen Free Status	Halogen Free
Number of Circuits	1 Circuit
Number of Positions	3 Position
Power Dissipation	300 W
Clamping Voltage	24 V
Test Current	1 mA
Max Breakdown Voltage	15.5 V
Peak Pulse Power	300 W
Min Breakdown Voltage	13.3 V
Reverse Breakdown Voltage	13.3 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature	-55℃ ~ 150℃
Power Dissipation (Max)	300 mW
	Show
Size-Length	3.04 mm
Size-Width	1.4 mm
Size-Height	1.01 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
