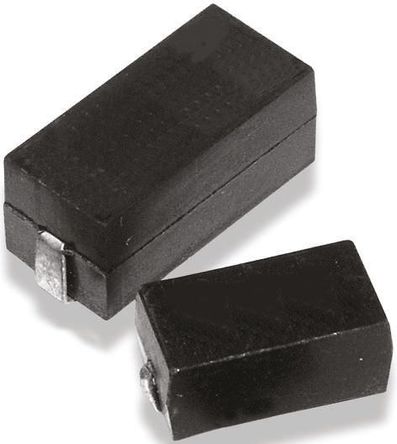

SMW22R2JT - TE Connectivity
Manufacturer:
TE Connectivity
ManyChip's Part#:
MC51807206
Category:
Chip SMD Resistor
Package:
2616
Datasheet:
Datasheet 3D Model
Description:
TE CONNECTIVITY / CGS SMW22R2JT SMD Chip Resistor, Wirewound, 2.2Ω, 300V, 2616 [6740 Metric], 2W, 5%, SMW Series
Stock Locations:
Availability:
611 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.19

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Tyco Electronics CGS introduces a surface mount power resistor suited to meet today"s circuit design needs. Each size offers low profile case design with flexible tinned copper terminations for reliable solder joints. All styles utilize a fully welded construction technique, unlike other designs that rely solely on tinned termination connections. These features allow the SM Series to withstand the higher temperatures associated with reflow, vapour phase, or infrared (IR) manufacturing processes without degradation.
**Features:**
* Low Profile Design
* Available on Tape
* Very Wide Value Range
* Ideal for Power Circuitry
* Available in 1, 2, 3 or 5 Watts

Show

SMW22R2JT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	2616
Voltage Rating (DC)	300 V
Insulation Resistance	10.0 GΩ
Capacitance Tolerance	±5 %
Power Rating	2 W
Resistance	2.2 Ω
Resistance Tolerance	±5 %
Operating Temperature (Max)	200 ℃
Operating Temperature (Min)	-55 ℃
Voltage Rating	300 V
Operating Voltage (Max)	300 V
	Show
Size-Length	7.9 mm
Size-Width	4 mm
Size-Height	3.55 mm
Operating Temperature	-80℃ ~ 280℃
Temperature Coefficient	±200 ppm/℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ELV Compliant	Compliant
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
HTS Code	8533210080
ECCN Code	EAR99
