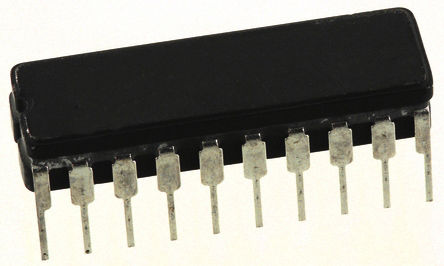

- SN54LS244J - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC74966596
-
Category:Logic Control, Logic Gate IC
-
Package:CDIP-20
-
Datasheet:Datasheet 3D Model
-
Description:Buffer/Line Driver 8CH Non-Inverting 3-ST Bipolar 20Pin CDIP Tube
-
Stock Locations:
-
Availability:100 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 26.06
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Leading the input to the transmission line this SN54LS244J buffer and line driver by Texas Instruments will amplify digital and analog signals. With a 3-state output, this is power management at its best. This line driver has an operating temperature range of -55 °C to 125 °C. This device comes in tube packaging. It has 8 channels per chip. This non-inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V.
SN54LS244J Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 20 Pin |
| Case/Package | CDIP-20 |
| Supply Voltage (DC) | 4.50V ~ 5.50V |
| Number of Outputs | 8 Output |
| Number of Bits | 8 Bit |
| Voltage Nodes | 5.00 V |
| Quiescent Current | 27 mA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Show | |
| Size-Length | 24.2 mm |
| Size-Width | 6.92 mm |
| Size-Height | 4.57 mm |
| Operating Temperature | -55℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| ECCN Code | EAR99 |
