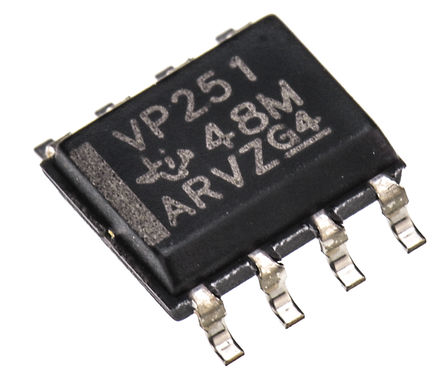

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The SN65HVD251D is an industrial CAN (Controller Area Network) bus transceiver in 8 pin SOIC package. It is intended for use in applications employing CAN serial communication physical layer in accordance with the ISO 11898 standard. The SN65HVD251D provides differential transmit capability to bus and differential receive capability to CAN controller at speeds up to 1Mbps. The SN65HVD251D features cross wire, overvoltage and loss of ground protection to ±36V, overtemperature protection, -7V to 12V common mode range and tolerance to transients of ±200V. The transceiver interfaces single ended CAN controller with the differential CAN bus.
- Supply voltage range from 4.5V to 5.5V
- Drop in improved replacement for PCA82C250 and PCA82C251
- Bus fault protection of ±36V
- High input impedance allows up to 120 nodes on bus
- Bus pin ESD protection exceeds 14KV HBM
- Unpowered node does not disturb bus
- Low current standby mode of typically 200µA
- Thermal shutdown protection
- Glitch free power up and power down CAN bus protection for hot plugging
- Operating temperature range -40°C to 125°C
- This device has limited built-in ESD protection. The leads should be shorted together or device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
SN65HVD251D Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | SOIC-8 |
| Supply Voltage (DC) | 4.50V ~ 5.50V |
| Supply Current | 65 mA |
| Number of Channels | 1 Channel |
| Number of Positions | 8 Position |
| Data Rate | 1.00 Mbps |
| Drivers Per Package | 1 |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 4.5V ~ 5.5V |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 4.5 V |
| Show | |
| Size-Length | 4.9 mm |
| Size-Width | 3.91 mm |
| Size-Height | 1.58 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
