Description
- Description
- The "LV123A devices are dual retriggerable monostable multivibrators designed for 2-V to 5.5-V VCC operation.
- Features
- • 2-V to 5.5-V VCC Operation
- • Maximum tpd of 11 ns at 5 V
- • Typical VOLP (Output Ground Bounce)
- < 0.8 V at VCC = 3.3 V, TA = 25°C
- • Typical VOHV (Output VOH Undershoot)
- > 2.3 V at VCC = 3.3 V, TA = 25°C
- • Support Mixed-Mode Voltage Operation on All Ports
- • Schmitt-Trigger Circuitry on A, B, and CLR Inputs for Slow Input Transition Rates
- • Edge Triggered From Active-High or Active-Low Gated Logic Inputs
- • Ioff Supports Partial-Power-Down Mode Operation
- • Retriggerable for Very Long Output Pulses, up to 100% Duty Cycle
- • Overriding Clear Terminates Output Pulse
- • Glitch-Free Power-Up Reset on Outputs
- • Latch-Up Performance Exceeds 100 mA Per JESD 78, Class 11
- • ESD Protection Exceeds JESD 22
- – 2000-V Human-Body Model (A114-A)
- – 200-V Machine Model (A115-A)
- – 1000-V Charged-Device Model (C101)
- Applications
- • AV Receivers
- • Blu-ray Players and Home Theaters
- • DVD Recorders and Players
- • Desktop PCs or Notebook PCs
- • Digital Radio and Internet Radio Players
- • Digital Video Cameras (DVC)
- • Embedded PCs
- • GPS: Personal Navigation Devices
- • Mobile Internet Devices
- • Network Attached Storage (NAS)
- • Personal Digital Assistant (PDA)
- • Server PSU
- • Solid-State Drive (SSD): Client and Enterprise
- • Video Analytics Servers
- • Wireless Headsets, Keyboard, and Mice

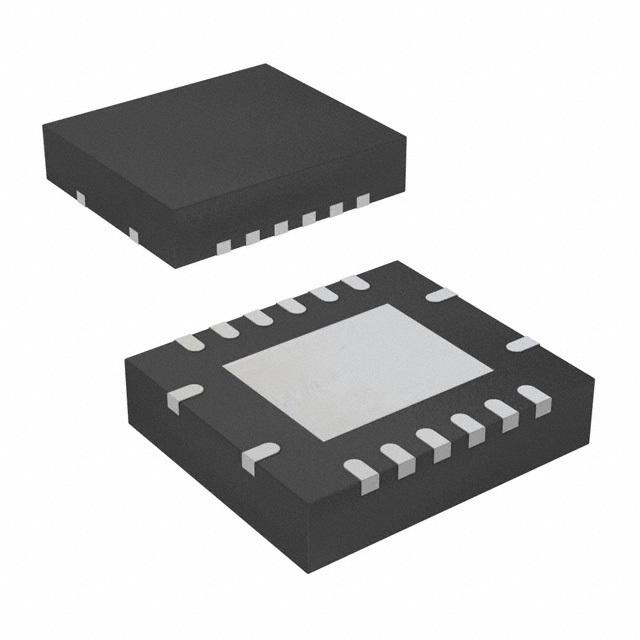

SN74LV123ARGYR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 16 Pin |
| Case/Package | VQFN-16 |
| Digital Logic Level | TTL |
| Supply Voltage (DC) | 2.00V ~ 5.50V |
| Operating Voltage | 2V ~ 5.5V |
| Output Current | 12 mA |
| Number of Circuits | 2 Circuit |
| Number of Bits | 2 Bit |
| Voltage Nodes | 2.50 V, 3.30 V, 5.00 V |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 2V ~ 5.5V |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 2 V |
| Show | |
| Size-Length | 4 mm |
| Size-Width | 3.5 mm |
| Size-Height | 0.8 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
