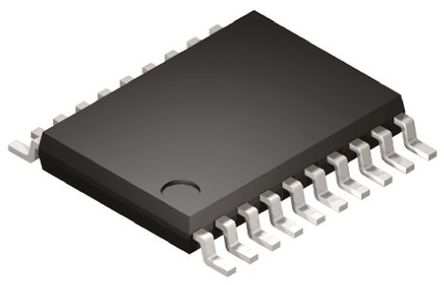

Image is for your reference only,please check specifications for details

SN74LV273APWR - TI
Manufacturer:
TI
ManyChip's Part#:
MC4801107
Category:
Flip Flop IC
Package:
TSSOP-20
Datasheet:
Datasheet 3D Model
Description:
Flip-Flop, Non Inverted, Positive Edge, 74LV273, D, 6.2ns, 160MHz, 25mA, TSSOP
Stock Locations:
Availability:
9,000 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.82

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The SN74LV273APWR is an octal positive-edge-triggered D-type Flip-flop with clear. It is designed for 2 to 5.5V VCC operation. It supports mixed-mode voltage operation on all ports. This device is a positive-edge-triggered flip-flop with direct clear (CLR) input. Information at the data (D) inputs meeting the setup time requirements is transferred to the Q outputs on the positive-going edge of the clock pulse. Clock triggering occurs at a particular voltage level and is not directly related to the transition time of the positive-going pulse. When the clock input is at either the high or low level, the D-input signal has no effect at the output.
Latch-up performance exceeds 250mA per JESD 17
Maximum tpd of 10.5ns at 5V
Allows down-voltage translation
Slow edges reduce noise
Supports mixed-mode voltage operation on all ports

Show

SN74LV273APWR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	TSSOP-20
Frequency	160 MHz
Supply Voltage (DC)	2.70V ~ 5.50V
Number of Outputs	8 Output
Output Current	25 mA
Number of Circuits	8 Circuit
Number of Positions	20 Position
Clock Speed	160 MHz
Number of Bits	8 Bit
Propagation Delay Max (tpd)	12.5 ns
Polarity	Non-Inverting
Voltage Nodes	5.00 V, 3.30 V, 2.50 V
Input Capacitance	2 pF
Output Current Drive	-1.00 mA
Number of Inputs	8 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2 V
	Show
Size-Length	6.5 mm
Size-Width	4.4 mm
Size-Height	1.15 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
ECCN Code	EAR99
