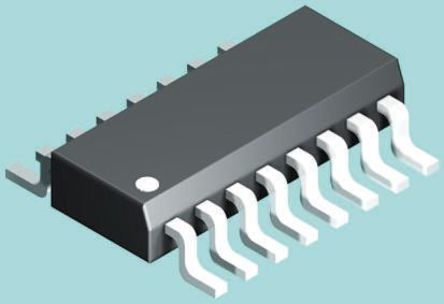

SN74LV4052AD - TI
Manufacturer:
TI
ManyChip's Part#:
MC20828996
Category:
Analog Switch Ic, Analog Switch Multiplexer
Package:
SOIC-16
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS SN74LV4052AD Analog Multiplexer / Demultiplexer, 4:1, 2Circuits, 500Ω, 20μA, 2V to 5.5V, SOIC-16
Stock Locations:
Availability:
232 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.52

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The SN74LV4052AD is a dual 4-channel CMOS Analog Multiplexer/Demultiplexer that can handle both analog and digital signals. Each channel permits signals with amplitudes up to 5.5V (peak) to be transmitted in either direction. Applications include signal gating, chopping, modulation or demodulation (modem) and signal multiplexing for analog-to-digital and digital-to-analog conversion systems.
Fast switching
High ON-OFF output-voltage ratio
Low crosstalk between switches
Extremely low input current
Latch-Up performance exceeds 100mA
Green product and no Sb/Br

Show

SN74LV4052AD Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Supply Voltage (DC)	2.00V ~ 5.50V
Number of Outputs	2 Output
Supply Current	20 µA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	16 Position
Number of Bits	4 Bit
Propagation Delay Max (tpd)	16.0 ns
Voltage Nodes	5.00 V, 3.30 V, 2.50 V
Bandwidth	50 Mhz
Number of Inputs	8 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	50 MHz
Supply Voltage	2V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2 V
	Show
Size-Length	9.9 mm
Size-Width	3.91 mm
Size-Height	1.58 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
