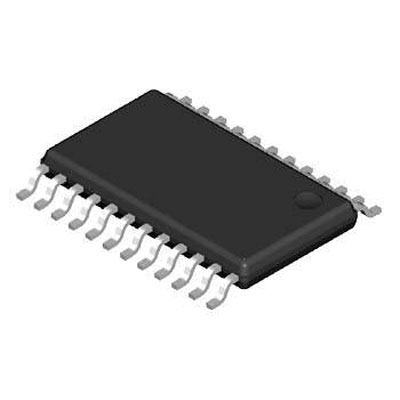

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Properly add to a versatile computer design with this SN74LVT8996PW logic circuit manufactured by Texas Instruments. This part has an operating temperature range of -40 °C to 85 °C. This device comes in tube packaging.

Show

SN74LVT8996PW Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	24 Pin
Case/Package	TSSOP-24
Supply Voltage (DC)	2.70V ~ 3.60V
Number of Positions	24 Position
Number of Bits	10 Bit
Voltage Nodes	3.30 V, 2.70 V
Number of Inputs	10 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.7V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	2.7 V
	Show
Size-Height	1.05 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
