Description

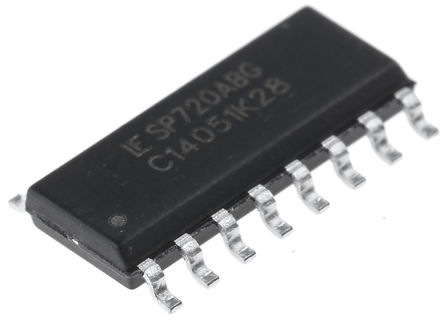

The SP720ABG is a 16-pin TVS Diode Array with matte tin-plated copper alloy leads and moulded epoxy body. The SP720 is an array of SCR/diode bipolar structures for ESD and overvoltage protection to sensitive input circuits. The SP720 has 2 protection SCR/diode device structures per input. A total of 14 available inputs can be used to protect up to 14 external signal or bus lines. The SCR structures are designed for fast triggering at a threshold of one +VBE diode threshold above V+ (pin 16).
1nA at 25°C Low input leakage current
3pF Typical low input capacitance
2ns Input switching speed
Green product
UL94V-0 Flammability rating

Show

SP720ABG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Voltage Rating (DC)	30.0 V
Operating Voltage	30 V
Capacitance	3 pF
Breakdown Voltage	2 V
Number of Circuits	14 Circuit
Number of Channels	14 Channel
Number of Positions	16 Position
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
	Show
Size-Length	10 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 105℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
ECCN Code	EAR99
