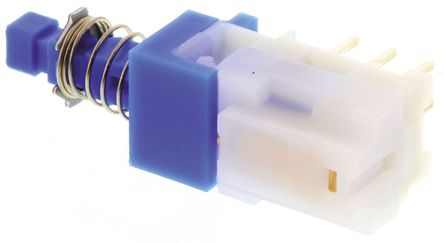

Image is for your reference only,please check specifications for details

SPUJ190900 - ALPS Electric
Manufacturer:
ALPS Electric
ManyChip's Part#:
MC5171871
Category:
Pushbutton Switch, Switch Push button
Package:
100
Datasheet:
Datasheet 3D Model
Description:
Special Switch, DPDT, Latched, 0.1A, 30VDC, 12 PCB Hole Cnt, Solder Terminal, Through Hole-right Angle
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The SPUJ series from Alps are push button switches available in SMD and snap-in terminals. These are 2mm travel, horizontal type switches suitable for multiple circuits. Typical applications include FP-TV, DVD player and personal audio applications.
2 or 4 pole configuration switches
Maximum rating of 0.1A at 30VDC
Initial contact resistance of 20mohm maximum
Latching and momentary operations
Operating force of 1.5N for 2 pole and 2.3N for 4 pole
PC board mounting
Non shorting change over timing

Show

SPUJ190900 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	100
Number of Rows	2 Row
Contacts Type	SPDT
Number of Circuits	2 Circuit
Contact Current Rating	100mA @30VDC
Current Rating (Max)	0.1A @30VDC
Operating Temperature (Max)	60 ℃
Operating Temperature (Min)	-10 ℃
Voltage Rating (DC Max)	30 V
Maximum Contact Resistance (Max)	20 mΩ
	Show
Size-Length	25 mm
Size-Width	7.4 mm
Size-Height	8.8 mm
Operating Temperature	-10℃ ~ 60℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2016/06/20
HTS Code	8536509033
ECCN Code	EAR99
HK STC License	NLR
