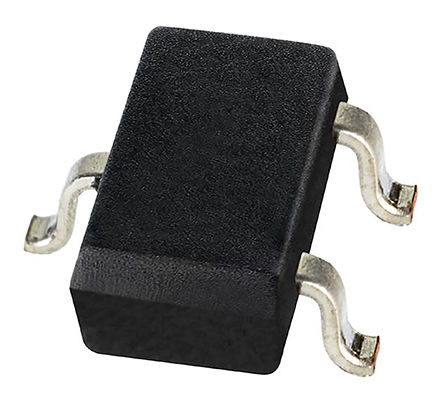

Image is for your reference only,please check specifications for details

SS39ET - Honeywell
Manufacturer:
Honeywell
ManyChip's Part#:
MC825022
Category:
Magnetic Sensor
Package:
SOT-23-3
Datasheet:
Datasheet 3D Model
Description:
Magnetic Hall-Effect Sensor ICs: SS39ET/SS49E/SS59ET Series Low Cost Linear Hall-Effect Sensor IC, Energy Efficient 2.7VDC to 6.5VDC, -40° C to 100° C Temperature Range, SOT23 Surface Mount, 3000 per Reel
Stock Locations:
Availability:
1,870 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.32

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The SS39ET is a small, versatile and linear hall-effect Sensor IC, operated by the magnetic field from a permanent magnet or an electromagnet. The linear sourcing output voltage is set by the supply voltage and varies in proportion to the strength of the magnetic field. The low voltage capability (as low as 2.7VDC) and reduced current consumption of only 6mA (typical at 5VDC) help make this product energy efficient. The integrated circuitry features low noise output, which makes it unnecessary to use external filtering. It also includes thin film resistors to provide increased temperature stability and accuracy. These products interface with many electrical components without buffering and the thermally balanced integrated circuit provides stable operation over the full temperature range.
Miniature and Sub-miniature Construction, Designed for Compact Designs with Tight Space Requirements
Energy Efficient, Low Current Consumption of 6mA at 5VDC
Easy PC Board Interface, Single Current Sourcing Output for Common Electronic Circuits
Circuit Design Flexibility, Voltage Range of 2.7 to 6.5VDC
Low Noise Output, Virtually Eliminates Need for Filtering
Stable Output, Thin Film Resistors Improve Accuracy
Application Flexibility, Responds to Either Positive or Negative Gauss
ESD sensitive device, take proper precaution while handling the device, Absolute maximum ratings are the extreme limits that the device will withstand without damage to the device.
