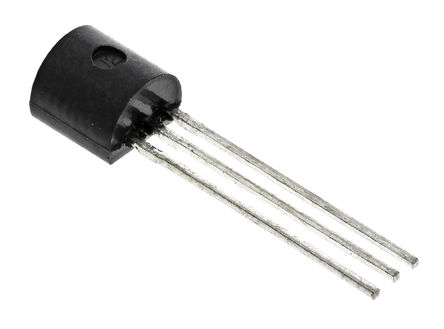

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The SS8050CBU is a NPN Epitaxial Silicon Transistor designed for use in 2W output amplifier of portable radios in Class B push-pull operation.
Complimentary to SS8550

Show

SS8050CBU Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-226-3
Frequency	100 MHz
Voltage Rating (DC)	25.0 V
Current Rating	1.50 A
Power Rating	1 W
Number of Positions	3 Position
Polarity	NPN
Power Dissipation	1 W
Breakdown Voltage (Collector to Emitter)	25 V
Continuous Collector Current	1.5A
hFE Min	120 @100mA, 1V
hFE Max	300
Input Power (Max)	1 W
DC Current Gain (hFE)	120
Operating Temperature (Max)	150 ℃
Power Dissipation (Max)	1 W
	Show
Size-Length	4.58 mm
Size-Width	3.86 mm
Size-Height	4.58 mm
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
