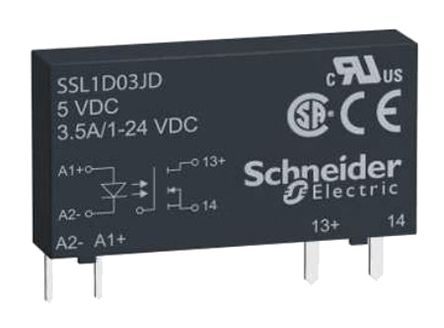

Image is for your reference only,please check specifications for details
- SSL1D03JD - Schneider Electric
-
Manufacturer:Schneider Electric
-
ManyChip's Part#:MC89059097
-
Category:Solid State Relay
-
Datasheet:Datasheet 3D Model
-
Description:SCHNEIDER ELECTRIC SSL1D03JD Твердотельное реле, SPST-NO, 3.5А, PCB, сквозное отверстие, 1В пост. тока, 24В пост. тока
-
Stock Locations:
-
Availability:74 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 22.93
Updated at 12/08/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- **Реле твердотельные компактные Zelio SSL**
- Твердотельные реле Schneider Electric Zelio представляют собой компактное и инновационное решение для широкого спектра задач, связанных с согласованием управления и коммутацией нагрузки. Компактные серии SSL доступны в нескольких конфигурациях входа и выхода для применения как в цепях переменного, так и постоянного тока. Компактные размеры и модульная конструкция уменьшают занимаемое пространство и позволяют легко устанавливать реле на розетку. Реле серии SSL втычного типа могут монтироваться непосредственно на печатную плату или на DIN-рейку с помощью розетки. Розетки для DIN-рейки доступны с винтовыми или пружинными зажимами.
SSL1D03JD Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Operating Voltage | 24.0V (max) |
| Capacitance | 1.5 pF |
| Contacts Type | SPST-NO |
| Load Current | 3.5 A |
| Load Current (Max) | 3.5 A |
| Load Current (Min) | 0.001 A |
| Operating Voltage (Min) | 1 VDC |
| Operating Voltage (Max) | 24 VDC |
| Show | |
| Size-Length | 28 mm |
| Size-Height | 15 mm |
| Operating Temperature | -20℃ ~ 80℃ |
| Packaging | Tube |
| RoHS | RoHS Compliant |
