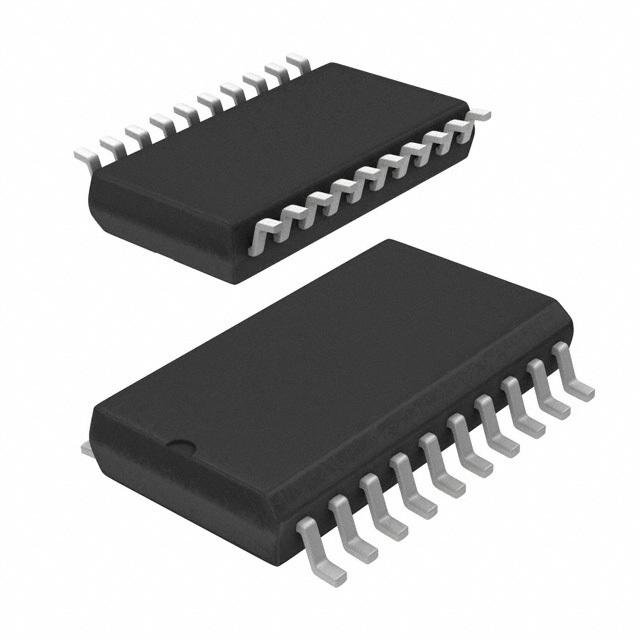

Image is for your reference only,please check specifications for details

ST62T60CM6 - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC58978896
Category:
Microcontroller, MCU IC
Package:
SOIC-20
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS ST62T60CM6 8Bit Microcontroller, ST62xx, 8MHz, 3.79KB, 128Byte, 20Pins, SOIC
Stock Locations:
Availability:
300 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.92

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ST62T60CM6 is a 8-bit HCMOS Microcontroller, which is targeted at low to medium complexity applications. All ST62xx devices are based on a building block approach, a common core is surrounded by a number of on-chip peripherals. OTP devices are functionally identical. OTP devices offer all the advantages of user programmability, which make them the ideal choice in a wide range of applications where frequent code changes, multiple code versions or last minute programmability are required. This compact device feature a timer comprising a 8-bit counter and a 7-bit programmable prescaler, a 8-bit auto-reload timer, a serial port communication interface, a 8-bit A/D converter with 7 analog inputs and a digital watchdog timer.
8MHz Maximum clock frequency
Run, wait and stop modes
5 Interrupt vectors
Look-up table capability in program memory
User programmable options
Fully programmable 13 I/O pins
6 I/O lines can sink up to 30mA to drive LEDs or TRIACs directly
8-bit Timer/counter with 7-bit programmable prescaler
8-bit Auto-reload timer with 7-bit programmable prescaler (AR Timer)
Digital watchdog
Oscillator safe guard
Low voltage detector for safe reset
8-bit ADC with 7 analog inputs
8-bit Synchronous peripheral interface (SPI)
On-chip clock oscillator can be driven by quartz crystal ceramic resonator or RC network
User configurable Power-on reset
One external non-maskable interrupt

Show

ST62T60CM6 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	SOIC-20
Frequency	8 MHz
Supply Voltage (DC)	5.00 V, 6.00 V (max)
Number of Positions	20 Position
Clock Speed	8 MHz
RAM Memory Size	128 b
Number of Bits	8 Bit
FLASH Memory Size	3884 b
Number of I/O Pins	13 IO
Access Time	8.00 µs
Memory Size	4000 B
Number of ADCs	1 ADC
Number of Inputs and Outputs	13 Input IO
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	3.6 VDC
Supply Voltage (Max)	6 V
Supply Voltage (Min)	3 V
	Show
Size-Width	7.6 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
